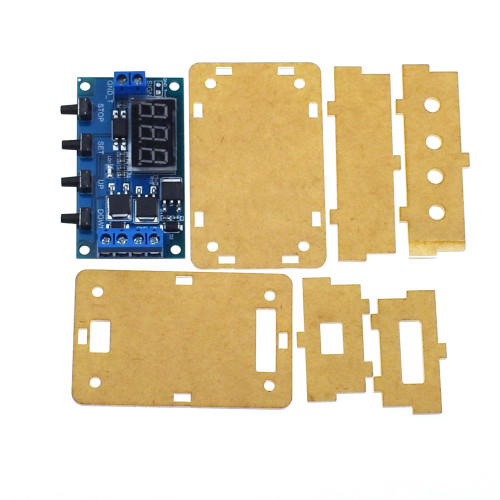

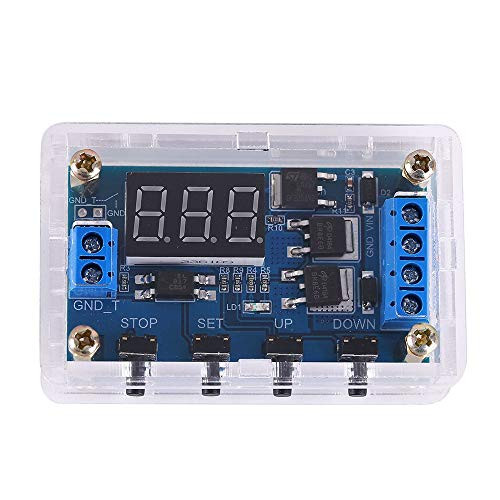

PEMENOL Timer Relay DC 5V 12V 24V Trigger Cycle Timer Delay Relay Module Dual MOS Switch Delay Control Board with Digital Tube Display and Protective Shell for Smart Home, Automatic Control

PEMENOL DC 5V 12V 24V timer relay module function with timing, delay and cycle control. With dual MOS output, digital tube display and reverse connection protection function, our timer relay board can be widely used at smart home, tndustrial control, automatic irrigation, indoor ventilation and protection equipment. Features: Timing, delay and cycle control Dual MOS output High level trigger Strong anti-interference abilit, no sparks and no noise Digital tube display Reverse connection protection and emergency stop Sleep mode with power off memory function Parameters setting indepedently 0.01 seconds to 9999 minutes adjustable time range Wide applications Parameters: Working Voltage:DC 5V-36V Control Current:30A(Max and need heat sink!Normal temperature 15A 400W) Quiescent Current:15mA Working Current:50mA Trigger signal source: High level trigger (3.0V~24V) Size:60*39*14mm Note: ?????? For detailed instructions, see the link: http://attach01.oss-us-west-1.aliyuncs.com/IC/Datasheet/13501.pdf Module can output voltage same to input voltage. GND and GND can not connect together otherwise module can not work normally. Please read use manual and description before use. Package: 1x Delay Relay Module 6x Acrylic shell 4x M3*12mm Copper column 4x M3*5+6mm Copper column 8x M3*6 screw
