PEMENOL Timer Relay DC 12V 24V Time Delay Relay Controller Board Digital LCD Display Timer Switch Trigger Cycle Module for Smart Control

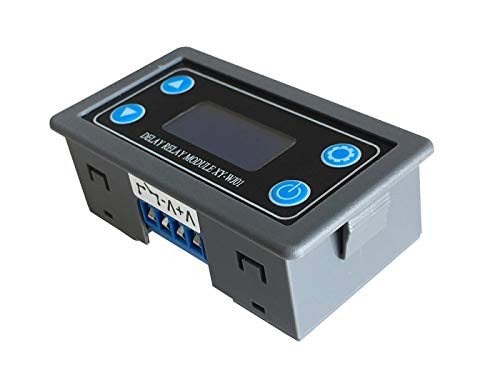

Parameters: 1. Product Name: Delay Relay Module 2. Product Number: XY-WJ01 3. Working Voltage: DC 6V-30V 4. Control Load Current: 10A(Max) 5. Quiescent Current: 15mA 6. Working Current: 50mA 7. Working temperature: -40~85? 8. Operating Humidity: 5%-99%RH 9. Suitable for battery: Storage Battery, Lithium battery 10. Trigger signal source: High level trigger (3.0V~24V), Low level trigger (0.0V~0.2V), switching control (passive switch) 11. Reverse protection: Yes Function: 1. Trigger delay. Module will began to delay after get a trigger signal.And output terminal status will change after delay.This function can be used in circuit protect form misoperation or prevent instantaneous high current. 2. Cycle timing. The load switch changes state according to the specified time after set cycle time. 3. Delayed power off. If use need control a light that need it power off after some time.This module can meet this function. 4. Circuit switch. Protect the circuit from damage caused by prolonged operation.
