Specifications:
Input Voltage: 4.5V-32V Output Voltage: 5V-35V (adjustable)
Max. Output Current: 4A
Efficiency: <92%
Output Ripple: <30mV
Switch Frequency: 400kHz
Operating Temperature: -40?~+85?
Size: 66*36*14mm/2.59*1.41*0.55"
Note: 1. If input voltage is lower than 4.5V, the voltmeter will not work and display. 2. Input voltage must be at least 1V higher than output voltage. 3. When power is over 20W, a heat sink is recommended to enhance heat dissipation. 4. If output voltage is always equals to input voltage and cannot be adjusted,turn potentiometer more than 10 circles counterclockwise please, then voltage can be adjusted normally.
Package Includes:

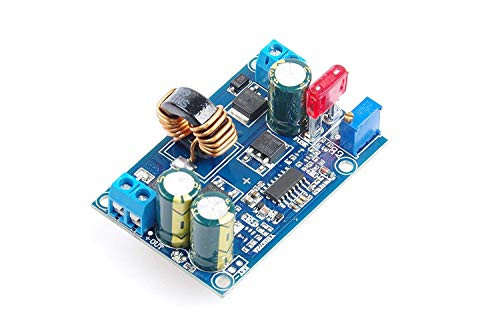

1 x Boost Converter Module
