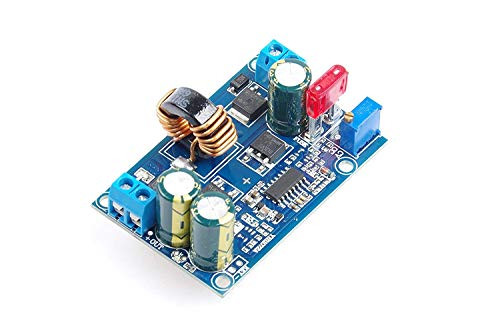

Module Name: 5A automatic step up/down constant voltage/current module
Module Properties: non-isolated synchronous rectifier automatic boost buck module
Input Voltage :5-32V
Input Current: 8A (MAX) peak 10A (6A long-term work)
Quiescent Current: 4mA
Output voltage :1.25-20V continuously adjustable, the default output is 12V
Output Current: 5A (MAX) (3A long-term work)
Output Constant Current: 0.2-5A
Working temperature: -40 to +85 degrees
Operating Frequency: 150KHz
Conversion efficiency: up to 96%
Overcurrent protection: Yes
Short-circuit protection: (enter 10A fuse) double circuit protection
Over-temperature protection: Yes, automatic reduces the output voltage if over temperature
Input Reverse Polarity Protection: No, (if necessary , please connect diode with input in series )
Wiring: free soldering wire terminal output
Application:
DIY a regulated power supply, provide a stable operating voltage, LED driver
Package include:
1x Boost Buck Converter
