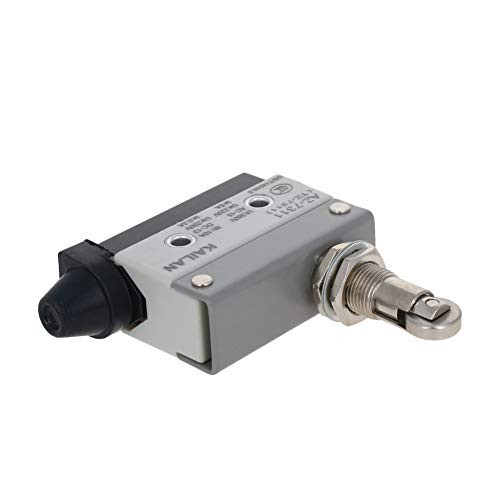

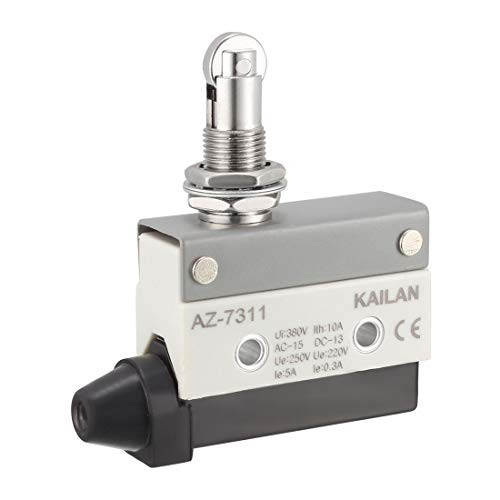

uxcell AZ-7311 Roller Plunger Micro Limit Switch Momentary Panel Mount 1NC plus1NO for CNC Mill 3D Printer Door Switch

Specification: Product Name: Limit Switch Model: AZ-7311 Actuator Type: Roller Plunger Type Rated Voltage: AC-15: 250V 5A DC-13: 220V 0.3A Contact Configuration: 1NC+1NO Body Size: 54 x 42 x 21mm (L*W*T) Mounting Hole Size: 4.2mm (D) Mounting Hole Distance: 25.4mm The roller plunger can be operated in a wide range by employing a cam, Dog, cylinder, or auxiliary actuator. Position detection accuracy is high. Operating Characteristics:? OF max.: 600g RF min.: 100g PT max.: 1.0mm OT min.: 6.0mm MD max.: 0.8mm OP: 33.3+/-1.2mm Description: Insentive ABS plastic shell, sealed construction. Panel mount, side fixed with better water-proof and oil-proof performance. Smooth operation with highter OT. Silver contacts. Easy-to-wire design. This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
