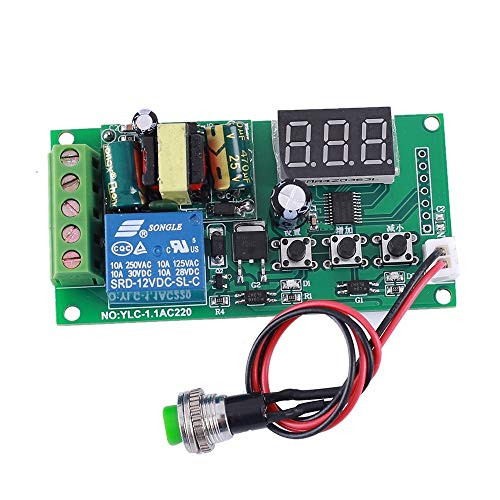

Timer Relay PEMENOL Digital Timer Delay Cycle Module AC 110V 220V 10A Timing On-Off Cycle Adjustable Relay Switch Controller Module with Dual LCD Display

Parameters: 1.Product Name: AC 85V-265V Cycle Timer Delay Module 2.Work Voltage: AC 85V-265V 3.Timing Range: 0-999ms, 0-999s, 0-999m, 0-999h 4.Power dissipation: <0.6W 5.Maximum Power: <2000W 6.Maximum Current: 10A 7.Working Temperature range: -20?~85? 8.Working Humidity Range: 5%-100%RH 9.Product Size: 79*43*32mm Using Steps: 1.Connect work power supply. 2.Set work parameters. 3.Remove power supply. 4.Connect to load at output terminal and load voltage. 5.Re-connect work power supply. Note : ?It is a relay output mode and cannot be used as a power module. It cannot output voltage. The load needs to be connected to a separate power supply. ?Please read use manual and description before use. Frequently asked questions: 1.Can you set timer 1 for seconds and timer 2 for hours? A : Sorry that it can not. the timing unit must be the same. 2.Can it start the timer automatically ? A : No, it can not. It need to push the button to start the timer. Package Include: 1pc AC 85V-265V Cycle Timer Delay Module
