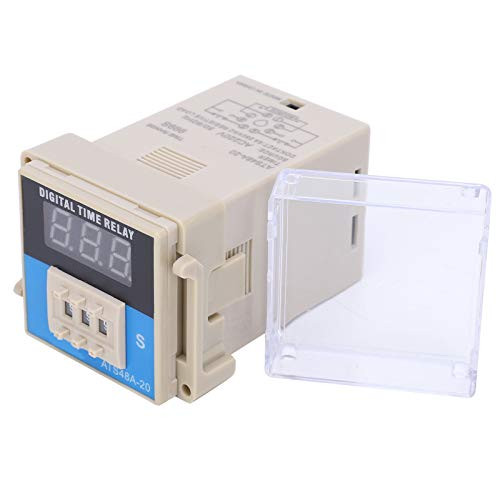

Time Delay Relay, LED Digital Display Time Relay, Time?Delay Control Electronic Components ATS48A?S, with Strong Anti?interference Performance, Low Working Power Consumption-DC12V-

Feature: 1. The relay can be cyclically delayed, flexible adjustment, wide range and flexible control mode. 2. With strong anti?interference performance, low working power consumption, large contact capacity, etc. 3. With high accuracy, wide delay range, reliable action performance, delay time digital setting and other functions. 4. Strong electrical conductivity, high-quality contacts are used, carrying large current. 5. Used as a time-delay control part in industrial automation control systems and machinery and equipment. Specification: Item Type: LED Digital Display Time RelayMaterial: PlasticModel: ATS48A-S Power Supply: 85-110% rated voltage Contact Capacity: AC220V 5A DC30V 5A (resistive) Power Consumption: <5W Mechanical Life: 2.1 million times Electrical Life: >100,000 times Environment Temperature: -10?+50? Altitude: <2000m Delay Control Accuracy: <0.3%±0.05 seconds Delay Range: 0.1 seconds -99 hours (adjusted by the digital buttons on the surface) Features: A set of power-on delay contact output, with reset and pause functions Main Purpose: To control the repeated operation and stop of equipment or alternate operation between two equipment Package List: 1 x Relay
