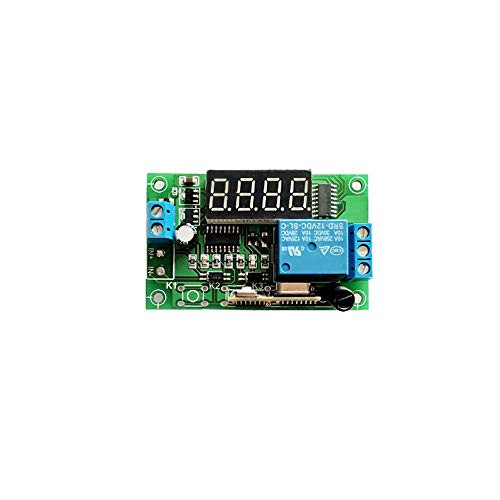

Taidacent 6V 12V Timer Switch Baby Carriage Electric Toy Model Countdown Timer Relay Wireless Remote Control Delay Time Switch Relay (6V7.4V Board with Shell)

1: Product model: YYC-2S (remote control version) can control solenoid valves, water pumps, motors, light belts, baby carriages, toy cars, etc. to run freely 2: Product function: press the remote control A key to start work; when the set time is reached, the work will be automatically stopped; during the countdown, press the A key again to directly stop work, the timing is cleared; the timing time is adjustable 3: Input voltage: DC 5/12 / 24V optional 4: Output power: can control DC or AC load within 10A 5: Time range: any time adjustable from 0.01 seconds to 9999 minutes 6: Remote control distance: 50 meters (open), 1000 meters high power remote control, please contact us if you need it Wiring port description: 1. DC +: Input positive pole of DC power supply 2. DC-: input negative pole of DC power supply 3. NO: Normally open interface of the relay, the relay is suspended before the pull-in, and shorted to COM after the pull-in 4. COM: Relay common interface 5. NC: Normally closed interface of the relay. The relay is short-circuited with COM before pull-in, and hangs up after pull-in Key setting description: A key: start / stop B key: adjust the time unit (move the decimal point position) C key: time plus D key: time minus Note: Setting time: When you press the first B or C or D setting key; you need to press for 2 seconds to prevent false triggering, after the digital tube display flashes; enter the setting state; when you stop pressing the setting key for more than 2 seconds; automatically exit Set up, restore the initial state Decimal time unit description: X.XX Decimal point is in the hundreds place, timing range: 0.01 seconds ~ 99.99 seconds XX.X Decimal point is in ten digits, timing range: 0.1 second to 999.9 seconds XXX has no decimal point, timing range: 1 second to 9999 seconds XXX. The decimal point is in the one's place, timing range: 1 min ~ 9999min
