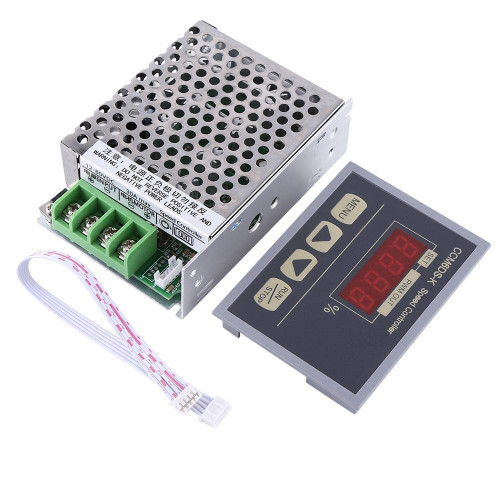

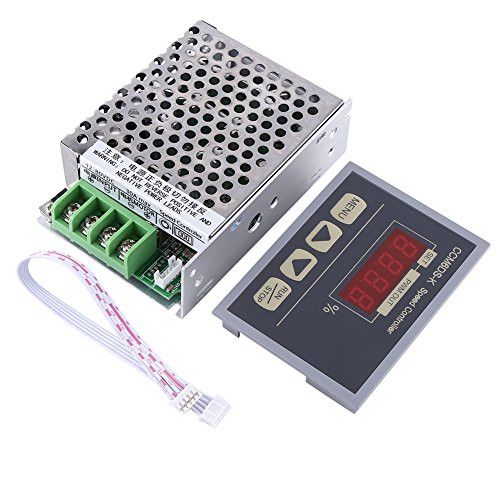

Speed Controller, 12-80V DC 30A PWM Motor Speed Controller Governor with Digital Display Panel

Description: This Is A Simple And EasyToUse Dc Motor Speed Controller Of Small Size, Elegant Appearance And Stable Performance. It Is Made With High Quality Circuit Board Which Ensures A Longer Service Life. The Input Voltage Can Be Dc 12V To 80V And Output Voltage Is 0-100% Of The Input Voltage. This Speed Controller Support Soft Start And Soft Stop, Which Is Quite Convenient To Set. Specifications: Input Voltage: Dc 12V80V Output Voltage: 0-100% Of The Input Voltage Maximum Current: 30A Control Power: 12V 250W Or Less, 24V 350W Or Less, 48V 500W Or Less Speed Range: 0~100% Pwm Frequency: 21Khz Controller Size: 110 X 77 X 36Mm / 4.37 X 3.03 X 1.41" Panel Size: 92 X 69X X13Mm / 3.62 X 2.71 X 0.51" Instruction: Set 1: "000""100",&Nbsp;Slow Start To 100% Speed Time Is Adjustable Between 0-10.0 Seconds, The Default Is 1 Second. Set 2: "000""100",&Nbsp;Slow Stop Time Is Adjustable Between 0-10.0 Seconds, The Default Is 1 Second. Set 3: "000""080",&Nbsp;The Minimum Speed Is Adjustable From 0 To 80%, And Is Less Than The Maximum Speed Setting Value, The Default Is 0. Set 4: "000""100", The Maximum Speed Is Adjustable Between 0-100%, And Is Greater Than The Minimum Speed Setting Value, The Default Is 100%. Set 5: "000", "002" , "005" , "010" , "015", "020" , "025",&Nbsp;The Speed Changes By 1%, 2%, 5%, 10%, 15%, 20%, 25% Each Time You Press The Up Or Down Button. Package Includes: 1 X Speed Controller
