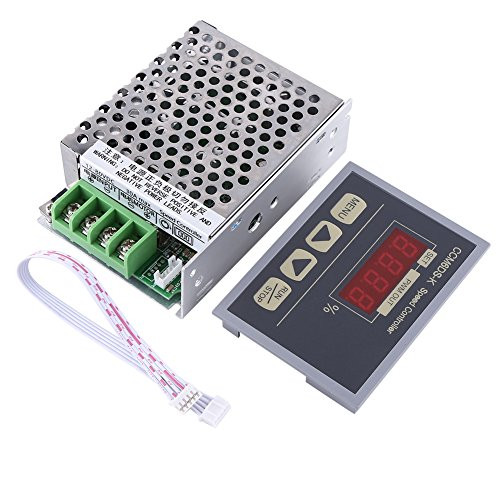

Motor Speed Controller Governor 12-80V PWM 30A DC,Motor Governor with Digital Display Panel? Button Switch Variable Stepless Speed Control Regulator, Slow Start Slow Stop

Description: This is a simple and easy-to-use DC motor speed controller of small size, elegant appearance and stable performance. It is made with high quality circuit board which ensures a longer service life. The input voltage can be DC 12V to 80V and output voltage is 0-100% of the input voltage. This speed controller support soft start and soft stop, which is quite convenient to set. Specifications: Model: CCM6DS-K Input Voltage: DC 12V-80V Output Voltage: 0-100% of the input voltage Control Power: 12V 250W or less, 24V 350W or less, 48V 500W or less Maximum Current: 30A Controller Size: 110 x 77 x 36mm / 4.37 x 3.03 x 1.41" Speed range: 0~100% PWM frequency: 21kHz Panel Size: 92 x 69x x13mm / 3.62 x 2.71 x 0.51" Instruction: Set 1: "000"-"100", Slow start to 100% speed time is adjustable between 0-10.0 seconds, the default is 1 second. Set 2: "000"-"100", Slow stop time is adjustable between 0-10.0 seconds, the default is 1 second. Set 3: "000"-"080", The minimum speed is adjustable from 0 to 80%, and is less than the maximum speed setting value, the default is 0. Set 4: "000"-"100", The maximum speed is adjustable between 0-100%, and is greater than the minimum speed setting value, the default is 100%. Set 5: "000", "002" , "005" , "010" , "015", "020" , "025", The speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25% each time you press the up or down button. Package Includes: 1 x Speed Controller Warm Attention: 1. DC motor governor is DC, not AC (such as: household 220V AC), otherwise it will burn out 2. The positive and negative poles of the DC power supply cannot be reversed, otherwise the governor will be damaged.
