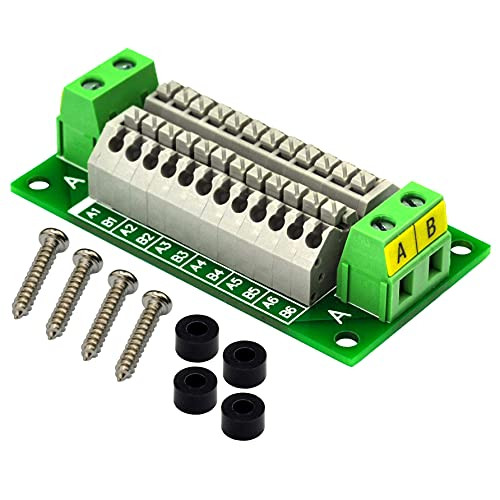

OONO 16 Amp 2x12 Position Terminal Block Distribution Module for AC DC

OONO 16 Amp 2x12 Position Terminal Block Distribution Module for AC DC

Was: $71.88
Now: $35.94
(No reviews yet) Write a Review
SKU:
ZS137066
UPC:
6954525591793
Condition:
New
Availability:
Free Shipping from the USA. Estimated 2-4 days delivery.
Adding to cart… The item has been added
1, 16Amp 48V 2x12 position screw terminal block distribution module. Support for multiple module extension connections. 2, Rated current 16 Amp(total input or output), Maximum voltage 48V. 3, A / B terminal blocks, Pitch 7.5mm/0.295", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass. 4, A1~B6 / A7~B12 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass. 5, UL CE CQC certified terminal blocks, FR-4 glass fiber PCB.
!
