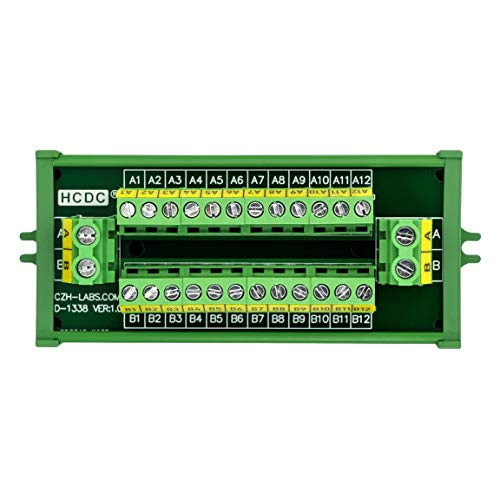

16Amp AC/DC 2x12 Position Terminal Block Distribution Module

1, 16Amp 48V 2x12 position terminal block distribution module. Support for multiple module extension connections. 2, Rated current 16 Amp(total input or output), Maximum voltage 48V AC or DC. 3, A / B Screw terminal blocks, Pitch 7.5mm/0.295", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16 Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass. 4, A1~B6 / A7~B12 Screwless terminal blocks, Pitch 3.5mm/0.138", Wire range 26AWG ~ 20AWG / 0.75mm square. Rated current 2 Amp(for each positon). Strip length 8mm. For the screwless terminals, you can use your fingers or a screwdriver to press the top button, then fill the wire conductor into the hole and release the button, which is very convenient. 5, UL CE CQC certified terminal blocks, FR-4 glass fiber PCB.
