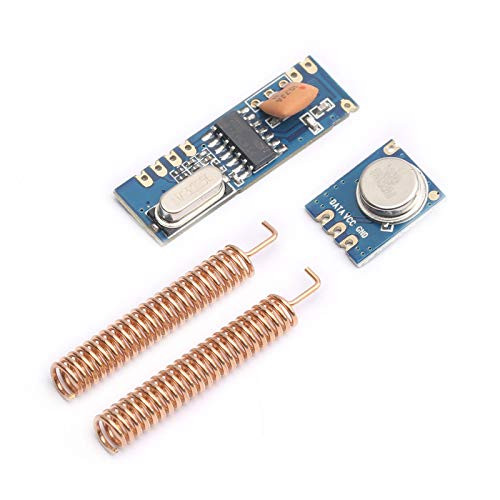

NOYITO 433MHz Ask Wireless Transmitter and Receiver Module Kit STX882 SRX882 with Copper Spring Antenna

Description: STX882 ASK Wireless Remote Control Transmitter Module The STX882 is an ASK transmit module with small size, ultra high power, and low harmonics. With high stability, it can be realized at a power of 50mW when the voltage is 3.6V, which is the module based on the maximum transmit power of the same voltage in the market. The data port of the module can be connected directly to the microcontroller, making the development and production of wireless products more CON SRX882 ASK ASK Wireless Remote Receiver Module The SRX882 is a micropower and powerful power for superheterodyne receivers and is complemented by the STX882/STX888 modules. The data port of the module can be directly connected to the microcontroller, making wireless product development and production more convenient. Parameter: 1, On-board SYN480R monolithic wireless ASK/OOK receiver chip 2, The module receiving frequency: 433MHz 3, Module receiving sensitivity: -107dBm 4, Module transmission rate: 2.5kbps (SWP), 10kbps (FIXED) 5, The module supply voltage: 3.3-5.5V 6, The PCB size: 17.2 (mm) x 11.8 (mm) Pin description: 1: ANT, connect a 50 ohm antenna. 2: GND, connect the power ground. 3: VCC, connect the positive power supply. 4: CS, module enable pin. 5: DATA, data input. 6: GND, connect the power ground. 7: ANT, connect a 50 ohm antenna. Package Included: 1Pcs STX882 Transmitter Module 1Pcs SRX882 receiver module 2Pcs Copper Spring Antennas
