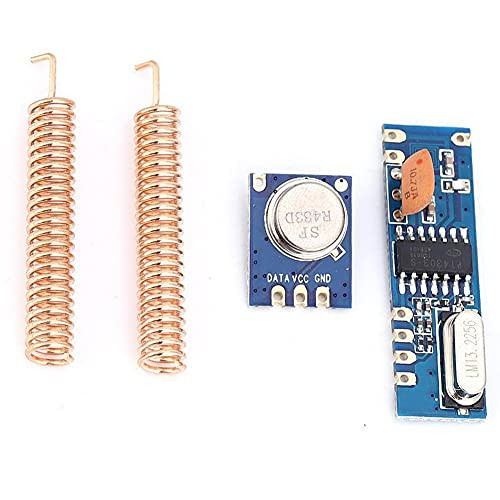

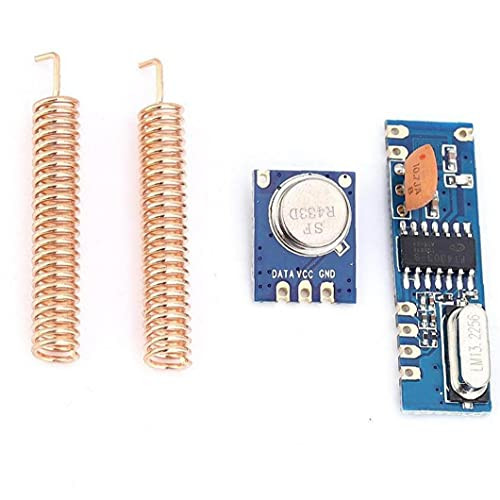

Alinan 3Sets 433MHz Ask STX882 SRX882 Wireless Remote Control Transmitter and Receiver Module Kit with Copper Spring Antenna

STX882 ASK Wireless Remote Control Transmitter Module SRX882 ASK ASK Wireless Remote Receiver Module The SRX882 is a micropower and powerful power for superheterodyne receivers and is complemented by the STX882/STX888 modules. The data port of the module can be directly connected to the microcontroller, making wireless product development and production more convenient. Parameter: 1, On-board SYN480R monolithic wireless ASK/OOK receiver chip 2, The module receiving frequency: 433MHz 3, Module receiving sensitivity: -107dBm 4,Module transmission rate: 0.1kbps -9.6kbps 5, The module supply voltage: 2.4-5.5V 6, Module transmission rate: 2.5kbps (SWP), 10kbps (FIXED) 7, The module supply voltage: 3.3-5.5V 8, The PCB size: 17.2 (mm) x 11.8 (mm) Application Circuit: B766-des-1 Pin Definition: B766-des-2 1: ANT, Antenna Input 2: DATA, Data Input 3: VCC, Connect Power Positive 4: GND, Connect Power Ground Mechanical Dimension B766-des-3 Pin Definition: B766-des-4 1: ANT, Connect 50 Ohm Antenna 2: GND, Connect Power Ground 3: VCC, Connect Power Positive 4: CS, Modules Enable Pin, Floating or Connected to High Level Work, Sleep When Connect Ground 5: DATA, Data Input 6: GND, Connect Power Ground 7: ANT, Connect 50 Ohm Antenna Mechanical Dimension B766-des-5 Package Included: 3 x STX882 Transmitter Module 3 x SRX882 Receiver Module 6 x Antennas Note: Manual measurement, with small error. Please check size in detail before purchase. Real colors may slightly differ from the pictures, as it depends on specific monitor settings and light brightness.
