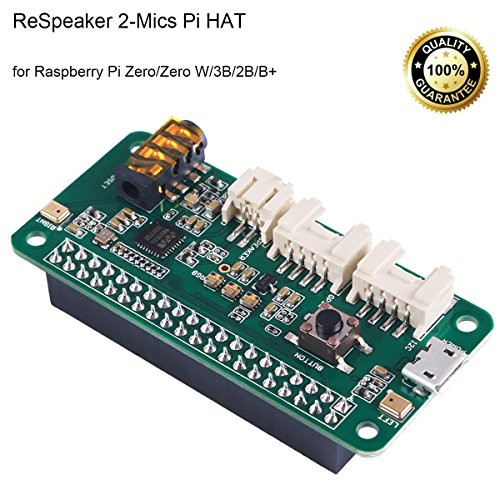

KEYESTUDIO ReSpeaker 2Mic Pi HAT V10 for Raspberry Pi Zero and Zero W Raspberry Pi B Raspberry Pi 2B and 3B

Features: 1)Support the Raspberry Pi Zero and Zero W, Raspberry Pi B+, Raspberry Pi 2B and 3B 2)Two microphones (Mic L and Mic R) 3)Two Grove connectors 4)One User-defined button 5)3.5mm audio interface 6)JST2.0 audio output interface Interface Explanations: 1)Button: default connected to GPIO17 2)Mic L and Mic R: microphone (labeled LEFT and RIGHT) 3)RGB LED: three APA102 RGB LEDs, connected to the SPI interface of Raspberry Pi. 4)WM8960: Low Power Stereo Codec 5)Raspberry Pi 40 pin header: support the Raspberry Pi Zero, Raspberry Pi 1 B+, Raspberry Pi 2B and 3B. 6)POWER: Micro USB port that powers the ReSpeaker 2-Mic Pi HAT. Power the circuit board to supply enough current when use the speaker. 7)I2C: Grove I2C port, connected to I2C-1 8)GPIO12: Grove digital port, connected to GPIO12 and GPIO13 9)JST 2.0 SPEAKER OUT: connecting speakers, JST 2.0 connector 10)3.5mm audio jack: connecting headphones or speakers with 3.5mm audio plug Package List: KEYESTUDIO ReSpeaker 2-Mic Pi HAT V1.0 * 1
