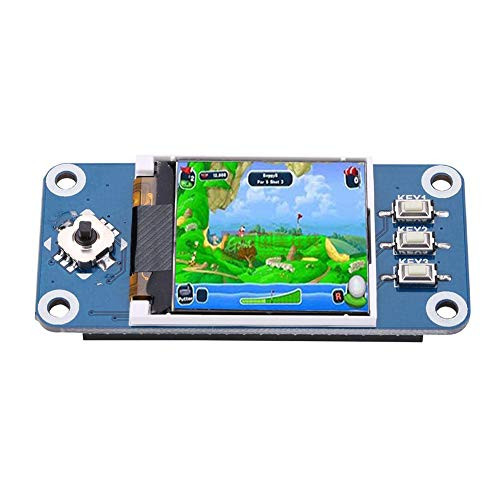

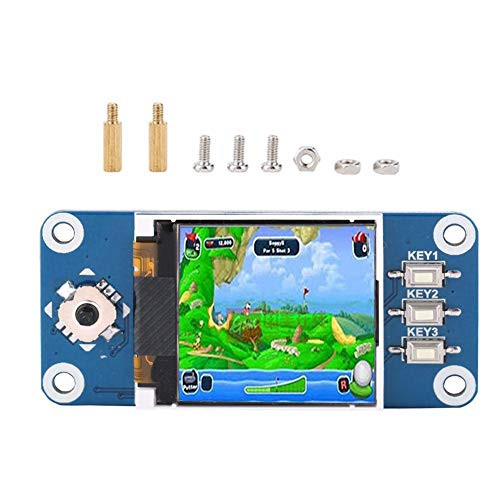

ASHATA Raspberry Pi LCD Module1.44 inch LCD Screen Display Module for Raspberry Pi 2B / 3B / Zero/Zero W

Specification: Driver: ST7735S Interface: for SPI Display color: RGB, 65K color Resolution: 128x128 Backlight: LED Operating voltage: 3.3V Size: 6.5 * 3 m / 2.6 * 1.2 in Weight: approx. 22g Interface: SYMBOL For Raspberry Pi PIN (BCM) DESCRIPTION KEY1 P21 Button 1/GPIO KEY2 P20 Button 2/GPIO KEY3 P16 Button 3/GPIO Joystick Up P6 Joystick Up Joystick Down P19 Joystick Down Joystick Left P5 Joystick Left Joystick Right P26 Joystick Right Joystick Press P13 Joystick Press SCLK P11/SCLK for SPI clock input MOSI P10/MOSI for SPI data input DC P25 "Data/Command selection (high for data, low for command)" CS P8/CE0 "Chip selection, low active" RST P27 "Reset, low active" BL P24 Backlight Package list: 1 * Screen Module 1 * Screw Kit
