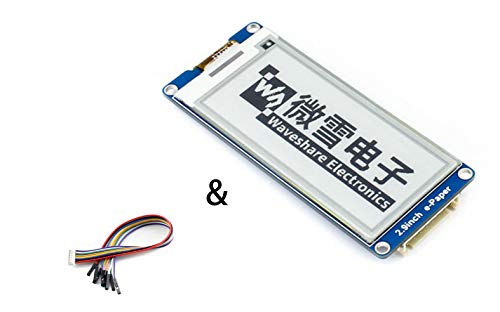

Ingcool 2 9inch e Ink Display Module 296x128 Resolution Two Color e Paper Display epaper Screen for Raspberry Pi Jetson Nano Arduino Nucleo SPI Interface Support Partial Refresh

 Introduction This product is an E-paper device adopting the image display technology of Microencapsulated Electrophoretic Display, MED.  The initial approach is to create tiny spheres, in which the charged color pigments are suspending in the transparent oil and would move depending on the electronic charge.  The E-paper screen display patterns by reflecting the ambient light, so it has no background light requirement. Under sunshine, the E-paper screen still has high visibility with a wide viewing angle of 180 degree. It is the ideal choice for E-reading. Specifications Operating voltage: 3.3V/5V Interface: 3-wire SPI, 4-wire SPI Outline dimension: 89.5mm × 38mm Display size: 66.89mm × 29.05mm Dot pitch: 0.138 × 0.138 Resolution: 296 × 128 Display color: black, white Grey level: 2 Partial refresh time: 0.3s Full refresh time: 2s Refresh power: 26.4mW(typ.) Standby power:?0.017mW Viewing angle: ?170°  Development Resources http://www.ingcool.com/wiki/2.9inch_e-Paper_Module?Amazon Package Content 2.9inch E-paper Display Module x1 PH2.0 20cm 8Pin x1 Note 1.We provide examples for four popular platforms: Arduino UNO, Jetson Nano? Raspberry Pi, and STM32. You can refer to the corresponding part according to the platform you use(This is a common template will be used by all types of the e-Paper, please refer to the corresponding type you have).Please contact us if you need any help.
