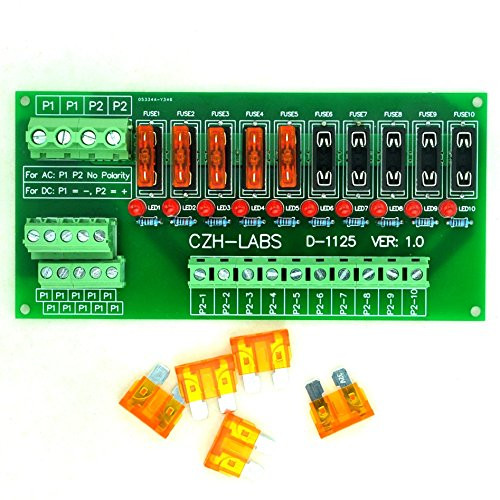

Electronics-Salon Panel Mount 10 Position Power Distribution Fuse Module Board, For AC110V .

Electronics-Salon Panel Mount 10 Position Power Distribution Fuse Module Board, For AC110V .

Was: $165.88
Now: $82.94
(No reviews yet) Write a Review
SKU:
TBQ245167
UPC:
6921407418943
Condition:
New
Availability:
Free Shipping from the USA. Estimated 2-4 days delivery.
Adding to cart… The item has been added
Panel Mount Power Distribution Fuse Module Board. Specification: Work voltage: 80~140Vac, total current rating 40Amp. Dimensions: 150mm x 72.5mm x 29mm (W x L x H). Input terminals: pitch - 7.62mm/0.3", current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. P1 output terminals: pitch - 5.08mm/0.2", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw. P2-1 to P2-10 output terminals: pitch - 7.5mm/0.295", maximum current 6.3A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw. Fuse holders for 5x20mm(DxL) tube fuse, factory-installed fuses T6.3Amp. with fuse fail indication function FR-4 fiber glass PCB, dual copper layers.
!
