Electronics-Salon Panel Mount 10 Position Power Distribution Fuse Module Board for AC-DC 5~32V

Electronics-Salon Panel Mount 10 Position Power Distribution Fuse Module Board for AC-DC 5~32V

Was: $143.90
Now: $71.95
(No reviews yet) Write a Review
SKU:
qt445629
UPC:
6921407419001
Condition:
New
Availability:
Free Shipping from the USA. Estimated 2-4 days delivery.
Adding to cart… The item has been added

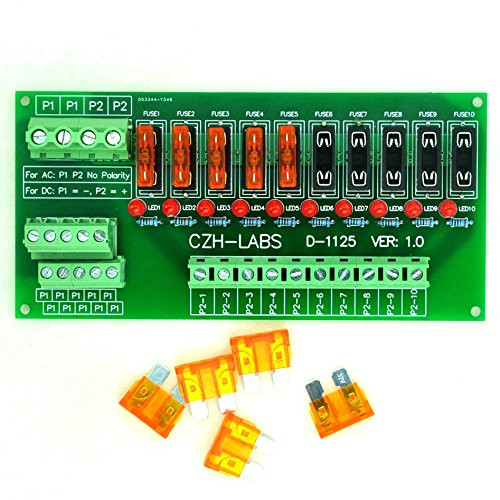

Panel Mount Power Distribution Fuse Module Board. Specification: Work voltage: AC or DC 5~32V, total current rating 40Amp. Dimensions: 150mm x 72.5mm x 29mm (W x L x H). Input terminals: pitch - 7.62mm/0.3", current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. P1 output terminals: pitch - 5.08mm/0.2", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw. P2-1 to P2-10 output terminals: pitch - 7.5mm/0.295", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw. Fuse holders for Medium Blade ATO/ATC Fuse, factory-installed fuses 5Amp. with fuse fail indication function FR-4 fiber glass PCB, dual copper layers. ?
!
