Feature:
Module Size: 60x55x28mm
Work Voltage: DC 12V-40V
Rated Current: 8A
Max Current: 10A
Quiescent Current: 0.02A (Standby)
Output Voltage: Approx.0%-100% of input voltage
Speed Range: 10%-100%
PWM Frequency: 13KHz
PWM Pulse Width Speed Range: 10%-100%
Power Range: 0.01-400W
Knob Potentiometer: Resistance B100K, Trepanning 8mm
Fuse Wire: 5x20mm 10A
Adopting 50V 1000uF large capacitance,with power supply reverse polarity protection, over-voltage protection funcion. Reserved lead type knob interface, if use lead type knob, it need to dismantle the fixed potentiometer first. Suitable for DC motor speed control etc.
Note:
DC power supply polarity can not be inversed, otherwise is may damage speeder.
Not suitable for AC power supply.
Package List:

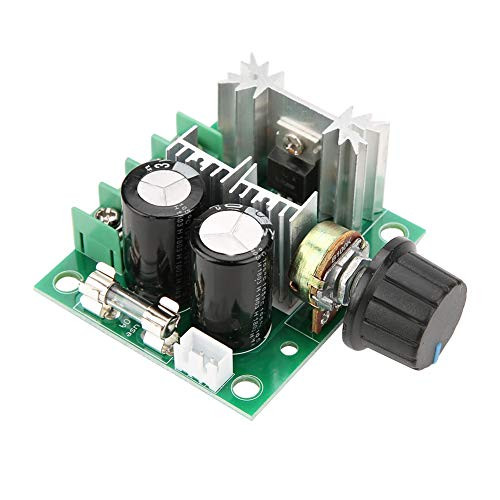

1pcs 12V-40V 10A DC Motor Speed Controller
DZS Elec 10A 12V 40V DC Motor Speed Controller 12V 24V PWM Variable Speed Regulator Governor Switch CCMHCN With Speed Control Knob
Was:
$93.78
Now:
$46.89
(No reviews yet)
Write a Review
Write a Review
DZS Elec 10A 12V 40V DC Motor Speed Controller 12V 24V PWM Variable Speed Regulator Governor Switch CCMHCN With Speed Control Knob
- SKU:
- ST58211
- UPC:
- 793029097419
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
