Working Voltage: DC 12V - DC 40V
Control Power: 0.01 - 400W
Rated Current: 8A
Max Current: 10A
PWM Frequency: 13 khz
Static Current: 0.02 A ( Standby )
PWM Duty Cycle: 10% -100%
PWM Frequency: 13 khz

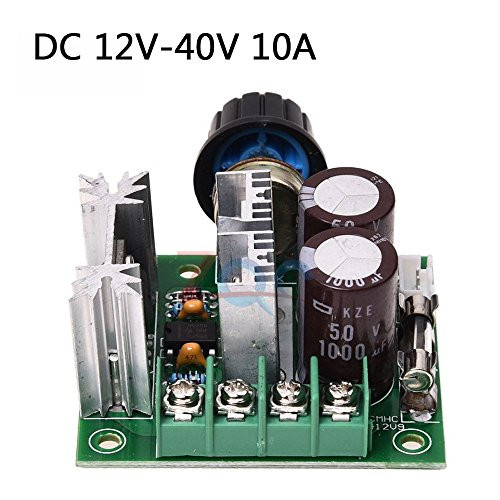

The DC Motor Speed Controller allows controlling speed of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load. The circuit also includes a 10A fuse, with reverse connection of power supply and control voltage over-voltage protection function.
Package Including:
1 x Speed Controller
