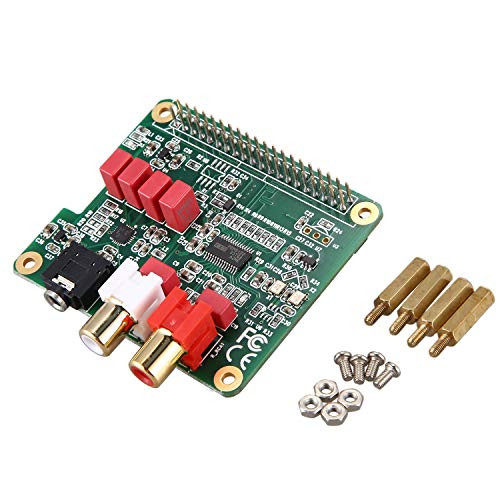

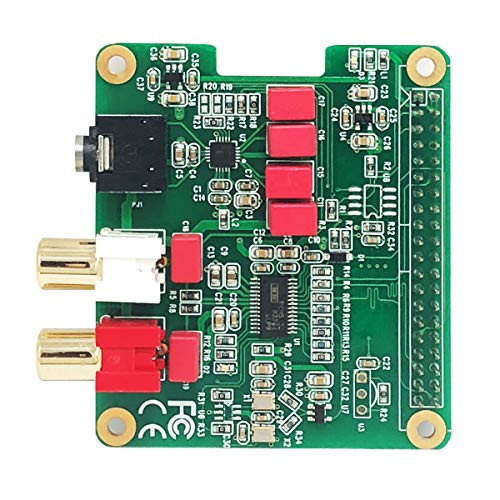

ASHATA Raspberry Pi Expansion Board Raspberry Pi HiFi DAC HD Audio PCM5122 24-bit Expansion Board for Raspberry Pi 3 Model B - 2B -B-A- Raspberry Pi Zero W

Specification: Raspberry Pi I2S Input (LRCK - GPIO19, BCK - GPIO18, DATA - GPIO21, GND) Output Ports: 1 x 3.5mm phone jack, 2 x RCA connectors Analog audio output level: 2.0VRMS Resolution/Sampling Rate: upto 24bit / 192KHz (Raspberry Pi I2S) IR receiver: GPIO17, 38KHz Operating System: Moode Audio Player, OSMC, Openelec, Raspbian Jessie, Volumio, Pi Core Player, RuneAudio Support: Volumio, RuneAudio, OSMC, XMBC(Kodi), MOODE etc. Full-HD audio: up to 24-bit/192kHz playback Built in audiophile TI Burr Brown DAC (TI PCM5122) Class leading audio: 112db SNR, and -93db THD Integrated hardware volume control TI's LP5907 Ultralow-Noise voltage regulator for optimal audio performance Built in IR receiver :Vishay TSOP34838) Available with RCA and 3.5mm phone jack output connectors Powered by Raspberry Pi, no external power requirements Conforms to the Raspberry Pi hardware-attached-on-top (HAT) specification Access to GPIO pins on HAT Packing List: 1 x Expansion Board
