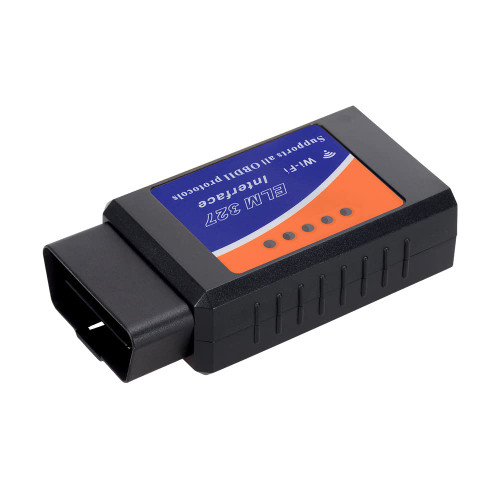

ZENHOX Low-Power Elm327 WiFi OBDII Scanner Car Diagnostic Tool WiFi Interface Car Code Reader for iOS Android Devices Support All OBD Protocols

Mini OBD2 WIFI Scanner Functions: Read diagnostic trouble codes, both generic & manufacturer-specific,& display their meaning (over 3000 generic code definitions in the database). Clear trouble codes and turn off the MIL ("Check Engine" light) Display current sensor data, including: Engine RPM Calculated Load Value Coolant Temperature Fuel System Status Vehicle Speed Short Term Fuel Trim Long Term Fuel Trim Intake Manifold Pressure Timing Advance Intake Air Temperature Air Flow Rate Absolute Throttle Position Oxygen sensor voltages / associated short term fuel trims Fuel System status Fuel Pressure Many others Specifications SSID: Port:35000 Range:50 ft (Line of sight) Antenna:Internal Power Consumption: 0.75 Watts (With Power Switch) Wifi Standard:802.11a/b/g Operating Temperature: -15 to 100 Deg Celsius Physical Dimensions:9*2.5*5CM Tips: 1.For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBDII compliant. 2.compatible with Andriod and IOS 3.Please turn on your car when connecting, or the App cannot connect successfully. Multi-Protocol Support: SAE J1850 PWM(41.6Kbaud) SAE J1850 VPW(10.4Kbaud) ISO9141-2(5 baud init,10.4Kbaud) ISO14230-4 KWP(5 baud init,10.4 Kbaud) ISO14230-4 KWP(fast init,10.4 Kbaud) ISO15765-4 CAN(11bit ID,500 Kbaud) ISO15765-4 CAN(29bit ID,500 Kbaud) ISO15765-4 CAN(11bit ID,250 Kbaud) ISO15765-4 CAN(29bit ID,250 Kbaud) SAE J1939 CAN(29bit ID,250*Kbaud) Support APP: Downloadable App For Android and IOS DashCommand (Fee applied) Torque Pro(Fee applied) Torque Lite OBD Auto Doctor GeekOD viecar Mini OBDII OBD Fusion Package: 1*OBDII Wifi Adapter
