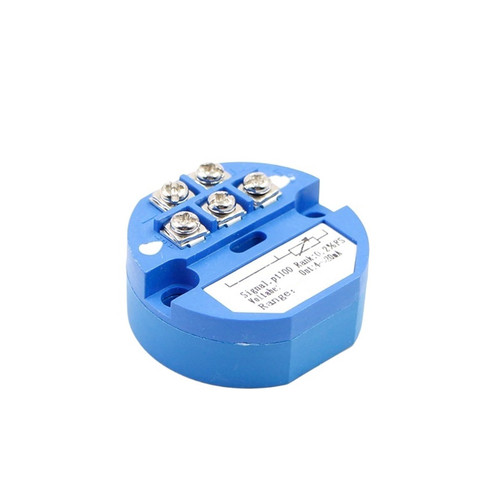

ZEEGII Temperature Transmitter K J N PT100 4-20mA Converter TC RTD Input 4-20mA Output Programmable Sensor Module with USB Interface (Color : Type N TC Input)

Main Features
Internal embedded cold-junction compensation.
Have USB port to do configuration.
Universal RTD TC thermocouple sign-al input, 2-wire 4-20mA output.
12-35V wide range power supply.
Support 2-wire, 3-wire, 4-wire RTD PT100/Cu100/CU50 input.
Refined frosted external shell, flame-retardant material.
In compatible with all the PLC, temperature controller, meter, etc.
Industrial grade operating temperature range: -40 to +85
Technical Parameters
Sign-al input: Thermocouple or 2-wire RTD, 3-wire RTD, 4-wire RTD.
Output: 2-wire 4-20mA current.
Output current limit: 20.3mA
Power supply: 12-35VDC, 0.2mA excitation current.
Measuring Accuracy: 0.5% TC input, 0.2% RTD input.
Temperature Drift: 25ppm/ F.S.
Excitation current: 0.2±0.01mA
Load capacity: 250or 500 -Protection circuit: Reverse polarity connection protection.
Software programmable: Yes, have programming usb cable, configuration software (English).
Support: Not supported
Operating temperature: -30-+80 -Storage temperature:
40-+120 -Material: PA66 -Installation:M4x2 screw, standard head-mounted.
Dimension: 44x33x24mm (LxWxH) Max. Input Range and Input Sensor Type
