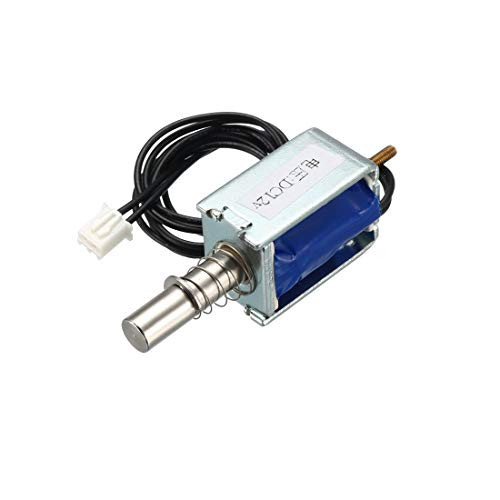

Yootop Pull Type Open Frame Electromagnet Solenoid DC12V 0.92A 10mm Stroke 400g Force Mini Linear Solenoid

Features: Solenoids are similar to electromagnets: composed of a large coil of copper wire with an armature (a cylinder of metal) in the center. When the coil is powered, the armature is pulled into the center of the coil. This allows the solenoid to pull (from one end) or push (from the other). This means when energized with up to 12Vdc, the solenoid moves and when the voltage is removed, it springs back to the original position. Specification: Rated Voltage & Current : DC12V 0.92A Power : 11.07W Action Form : Pull Type Stroke & Force : 10mm, 400g BodySize : 35 x 25 x 20mm/ 1.4"" x 1"" x 0.79""(L*W*H) Plunger Size : 25 x 7mm/ 1""x 0.28""(L*Max.D) Cable Length : 29cm/ 11.4"" Material : Metal, Electronic Parts Weight : 97g Package Content : 1 x Open FrameSolenoid Electromagnet Notice: Please take the electromagnet put down gently when you install it. The screw thread can make a corresponding change according to your demand. This product is small in size, please pay attention to in the process of using electricity, so as not to damage the electromagnet. Contact with us if you have any question. We are going to help you with our best.
