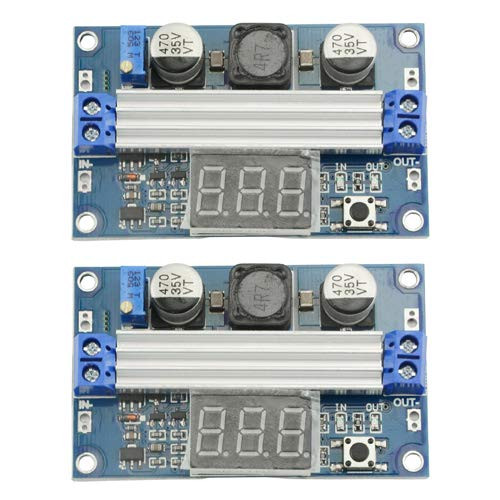

XLX DC DC High Power Adjustable Booster Regulator Module Input 30~35V to Output 35~35V 100W with Digital Display Voltmeter Step Up Voltage Power Supply Converter Module

About us: The display part of this module adopts the voltmeter microprocessor, and by using the on-resistance of power MOSFET and eliminating the current detection resistance, the efficiency is maximized, up to 96.4%.High power low resistance MOS tube, large package, high current, high efficiency schottky, super wide and thick PCB wiring.Ultra-wide voltage operation, 128W output power can be reached when input and output voltages are above 20V. Long-life switch power supply dedicated high frequency high capacity low resistance (low ESR) aluminum electrolytic capacitor, so that the output ripple is lower, stable performance. Package including:  2pcs x DC adjustable step-down module Module performance and features: 1. Input voltage: 3 ~ 35V dc (note: input voltage is less than 4V, the onboard voltmeter fails) 2. Input current: 9A (Max) 3. Output voltage: 3.5 ~ 35V dc (this board is a lifting platen, and the output voltage shall be >= the input voltage) 4. Output current: 6A (Max) 5. Output power: 75W, (128W when input and output voltages are greater than 20V) 6. Conversion efficiency: 96.7% (highest) 7. Output ripple: 24mV(TYP) 8. Range of onboard voltmeter: 4~40V, error + -0.1v 9, short circuit protection: yes (limit current 14A).Tips: when accessing the high-power load, since the impact current of the start-up is very high, it is recommended to start the machine first and then access the load. 10. Input reverse connection protection: none (if necessary, please input large current diode in series). 11. Length x width x height =67*43*12MM (excluding copper column) 12. Weight: 15g Tips: when accessing the high-power load, since the impact current of the start-up is very high, it is recommended to start the machine first and then access the load
