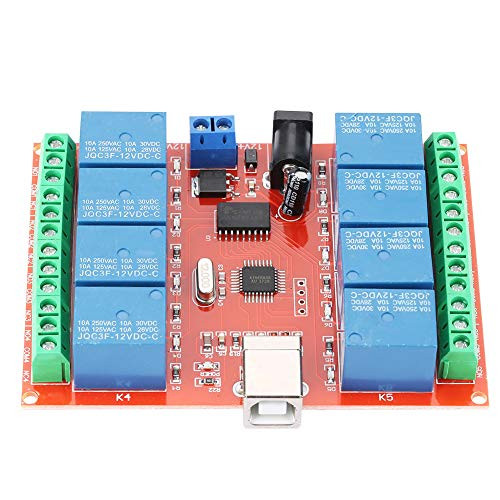

XLX 2PCS 8 Channel Relay Module with The Light Coupling 12V Relay Expansion Plate Load Controlled Relay Switch Module Supports AVR 51 PIC Relay Control Module

Features and benefits: 8 relay output modules, relay output contacts up to 250A 10A. Input IN1, IN2, IN3, and IN4 IN5, IN6, IN7, and IN8. signal lines are active low. VCC, GND power input terminal, relay can be separately powered by relay power input terminal JD-VCC. Use: 1, support all microcontroller control. 2. Industrial field; 3. PLC control; 4. Home intelligent control; ?Features?  High current relay, AC250V 10A DC30V 10A  The parts of the contacts are independently wired, safe and reliable  Standard interface for expansion on various development boards  Fixed screw holes for easy installation  Suitable for various platforms such as 51/AVR/AVR/ARM Module description: 1. This module complies with international safety standards, and the control area and the load area have isolation slots; 2, This 8 channel 12V relay has both optical and magnetic isolation, providing a lot of protection to the inputs from electrical faults on the outputs. 3. Adopt relay control; 4, With relay action indication, the suction is bright, the disconnection is not bright; 5. When the signal input terminal has a low level signal, the common terminal and the normally open terminal will be turned on; 6, the relay can directly control various equipment and load; 7, there are 8 normally open and 8 normally closed contacts, Can be selected by jumper relay and TTL or ground; 8.LED indicates its working status. Red refers to errors. 9.Transistor drive to increase the relay coil control pins high impedance 10.The control pin has a pull-down circuit to prevent malfunction relay vacant 11, Module size: 13.8cm*5.6cm* 17mm(length * width * height), net weight: 101g 12. Package include: 2pcs relay module
