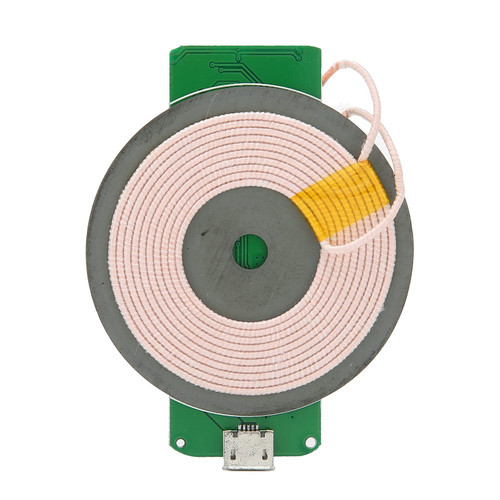

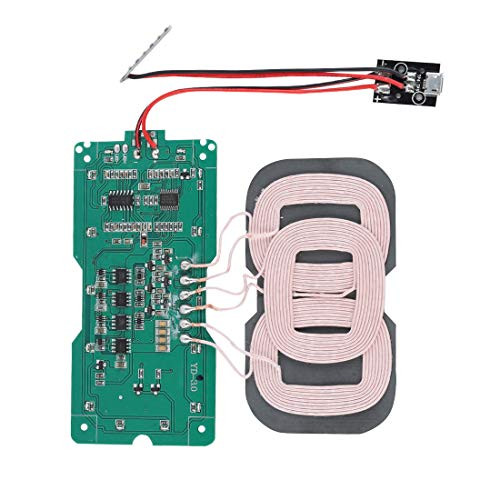

Wireless Charging Coil,QI Standard 3 Coil Wireless Charging Module,Micro USB Interface DIY Wireless Charging Pad with Indication Light,Built-in Short Circuit Protection,Over Voltage Protection

Specification: Type: QI standard three coil wireless charging (Micro port) Model: QC-3 Weight: About 50g / 1.7oz Plate frame size: About 104 * 52 * 1mm / 4 * 2 * 0.03in  Coil size: About 92 * 52 * 2mm / 3.6 * 2 * 0.07in Light indication: Breathing light Launch distance: 5-10mm Charging current: 1000mA Wireless charging output: 5V/1A Boost efficiency: 93% Working frequency: 110-205KHZ Wireless charging conversion efficiency: 75% Compatible with QI standards: WPC1.1 Protection measures: Over current, over temperature, short circuit protection Package List: 1 * 3 Coil Wireless Charging Module Note: Wireless charging = transmitter + receiver (can be charged when they are combined) 1. Mobile phone with wireless charging function: For iPhone8/8Plus/X or for Samsung S6/S7/S8/S9/Note5/Note8, etc., it has built-in "receiver" itself, or you have purchased "Receiver", you can charge by purchasing "transmitter (base)". 2. Please note that our products are transmitter module. Receiver module is NOT included.
