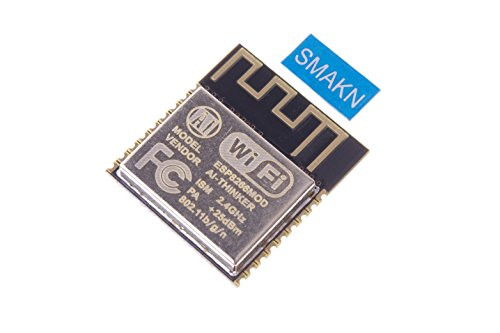

WINGONEER ESP8266 Esp-13 Remote Serial Port WIFI Transceiver Wireless Module AP+STA D

Description:
Model:ESP8266-13
ISM 2.4GHz,PA +25dBm,802.11b/g/n
Communication interface voltage: 3.3V;
Design enhancements: With a new 4-layer design, compared to the previous 2-layer board, stability, anti-interference ability and quality is better;
IO Port Package: SMD available, and the pin pitch is 1.5mm;
Antenna Type: Built-in PCB antenna is available ;
Wireless Network Mode: station / softAP / SoftAP + station;
Wireless criteria: 802.11 b / g / n;
Wi-Fi @ 2.4GHz, support for WPA / WPA2 security mode;
It is very easy to develop projects with AT command;

Warnings:
1.This module requires a 3.3 volt supply for VCC, and 3.3V logic.
2.It is not 5V tolant,Connect RX or TX on 5V Arduino will destroy this module.
3.You must use a logic level converter, or a 3.3V Arduino
4.The 3.3V supply on the Arduino Uno has inadequate current capabilit to power this
module.
5.You must provide a separate,higher 3.3V supply(about 300mA or better)

Package Included:
1x ESP8266 Remote Serial Port WIFI Transceiver Wireless Module Esp-13 AP+STA S
