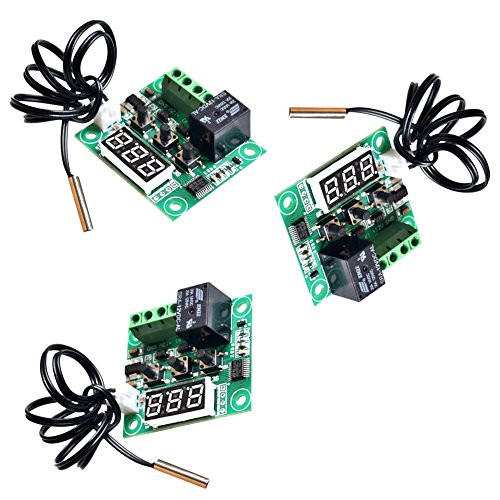

W1209 12V DC Digital Cooling Heating Thermostat Temp Control 50 110 c Temperature Controller 10A Relay with Waterproof Sensor Probe

Instructions for use: Connect the power supply and equipment, the measuring temperature is displayed, press the "SET" button, press " + or - " to set the desired temperature (long press " + or - " to quickly increase or decrease), press the "SET" to confirm the setting and return, controller automatically performs the relay ON/OFF. LED Indicator: LED off indicates the relay off; Lighting, indicates the relay is closed. Digital LED Tubes: "LL" indicates sensor open, "HH" indicates overrange, the relay will be forcibly disconnected; "---" indicates high temperature alarm Long press the "SET" button to enter the main menu settings, press " + or - " to switching between P0-P6, then long press "SET" or 10 seconds without keystrokes to confirm the setting and return. the thermostat output is 10A relay, meet a variety of high-power loads. Specifications: Temperature Range :-50 - 110 degree centigrade Resolution: When temperature is 0.1 degree, the resolution is -9.9~99.9, other temperature segment is 1 degree. Refresh Rate: 0.5s High Temperature Protection 0 - 110 degree centigrade Supply Voltage: DC 12V Static Current: Less than 35MA, attract current less than 65MA Output Voltage: DC 12V Output Power: 20A relay Measurement Input: NTC (10K 0.5%) Waterproof Sensor Buttons: P0 :Cooling / Heating; Range: C/H; Default: C P1 :Hysteresis Setting; Range:0.1-15; Default: 2 P2 :Highest Setting Limit; Range:110; Default: 110 P3: Lowest setting Limit; Range:-50; Default: -50 P4 :Temperature Correction; Range:-7-7°c; Default: 0°c P5: Delay Start Time; Range:0-10 Minute; Default: 0 P6: Key Tone Switch; Range:0-110; Default: Off When the Thermostat is power off, long press "- or +", you can restore the factory settings Package Included: 1x Digital Temp Controller
