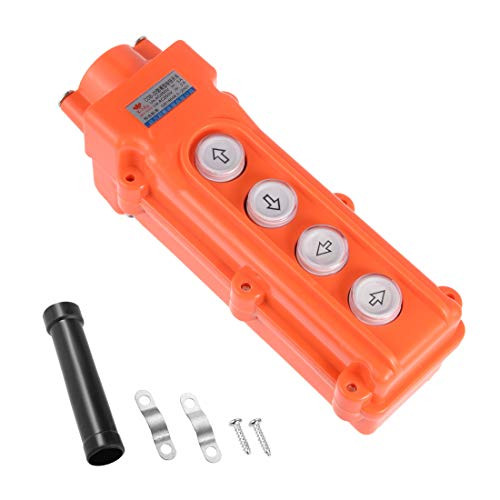

Features:
Model: COB-61A
Operation Type: Momentary
Material: ABS,Metal
Ue / Ie: AC250V 5A; AC500V 2A
Push Buttons: 4 Ways: Up, Down, On,Off
Jointing Seeve Size: 11.8 x 1.8cm / 4.6-inch x 0.7-inch(L*D)
Total Size: 18.5 x 7 x 5cm / 7.3-inch x 2.8-inch x 2-inch (L*W*H)
Descriptions:
Features: Up, Down, On,Off 4 push buttons.
ABS housing, comes with a rubber jointing sleeve, waterproof.
Suitablel pendant control station for Hoist and Crane.
Instructions for use:
1.Remove the end caps, install the sealing sheaths, and fasten them to the end faces of the buttons by screws
2.Remove the bottom cover, put all the control wires into the sealing sheath, and fasten them to the terminals of each button according to the electrical schematic.
3.Check or test the wiring is correct. If everything is normal, bundle the leads and fix them, and finally reinstall the bottom cover.
