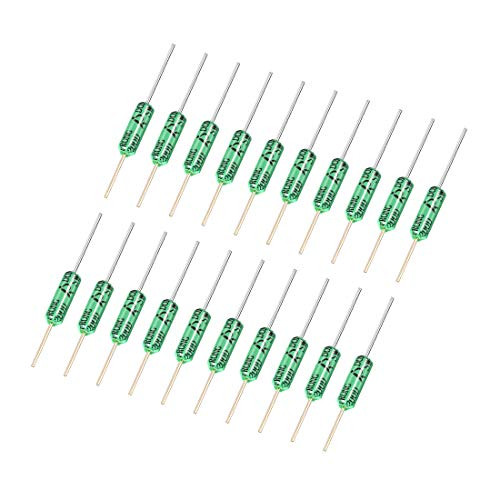

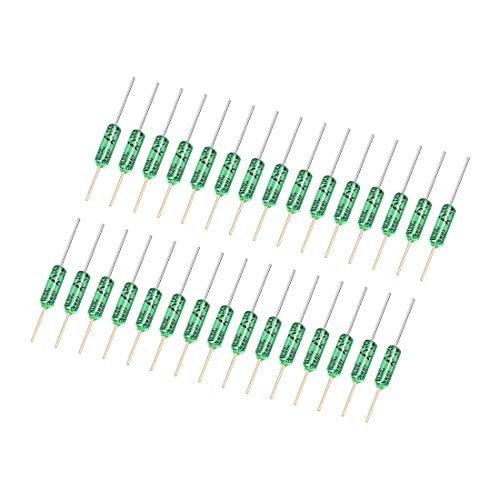

uxcell Electronic Vibration Sensor SW-200D Ball Rolling Shaking Switch 12V 2mA 10Pcs

Description: 1.SW-200D touches off the switch unidirectionally for the ball type dual bead, it has a longer conduction time than the SW-20. The appearance is sealed with heat-shrinkable tube to protect against dust and moisture. 2.This switch is suitable for touching off the small current circuit not suitable for acting as the mains switching. Applied to the eletronic toys, small household appliance, sports equipmens and anti-theft devices. 3.Made of metal, the electrical characteristics are similar to the mercury switch, but it is not as dangerous as the mercury switch and has environmental problems. It has a single-passing characteristic when shaking, and it is more convenient and safe to assemble. Working Characteristics: The gold end is (ON) the conduction trigger end, and the silver end is the (OFF) open end. When the external force is shaken to achieve the appropriate sway power, or the gold end is set at an angle lower than the horizontal proper angle, the conductive contact electrical characteristics can cause short-time conduction or continuous conduction (ON) state. When the electrical characteristics are to be restored to the open state (OFF), the switch setting environment must be stationary, and the silver end should be set at an angle of less than 10 degrees. When the switch is set horizontally, it can be easily triggered when it is shaken, and when the silver end is set downward, the shaking is extremely difficult to trigger. Specification: Model Number: SW-200D Conduction Time: 2MS Max.Voltage: 12V Rated Thermal Current: 2mA Insulation Resistance: 5M ohm Silver Tone Pin Size: 14mm x 0.6mm(L*D) Gold Tone Pin Size: 9.5mm x 0.6mm(L*D) Body Dimension: 12mm x 3.6mm(L*D) Package Content: 10 x Vibration Switch
