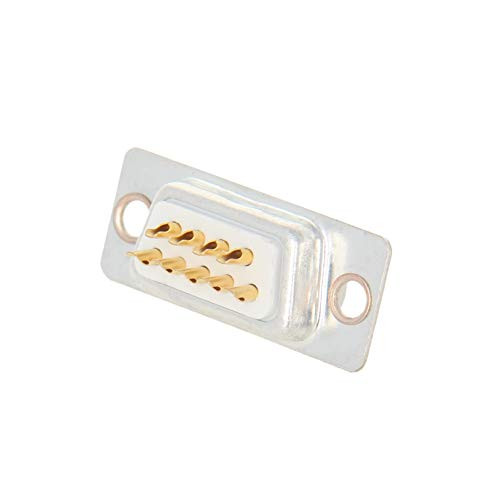

D-sub, rectangular D-shaped, d-sub connectors deliver one of the most commonly used and reliable connectivity solutions for the transmission of data.
Specifications:
Product Name: Female D-sub Connector
Connector Type: Socket(Female)
Contact Material: Copper Alloy
Number of Positions: 9
Number of Rows: 2
Rating Current: 5A
Mounting Type: Panel Mount
Termination Style: Solder Cup
Mounting Angle: Straight
Pin Distance: 2.84mm
Mounting Diameter: 3.05mm
Mounting Distance: 25mm
Overall Size: 30.8*12.5*15mm(L*W*H)
Features:
Solder type connection between the cable and connector is very easy to connect and creates permanent and extremely durable connections from cable to connector.
This D-sub connector is used in computer serial ports and other widely used computer peripheral parallel ports.
Package Includes:
5 X D-sub Connectors
