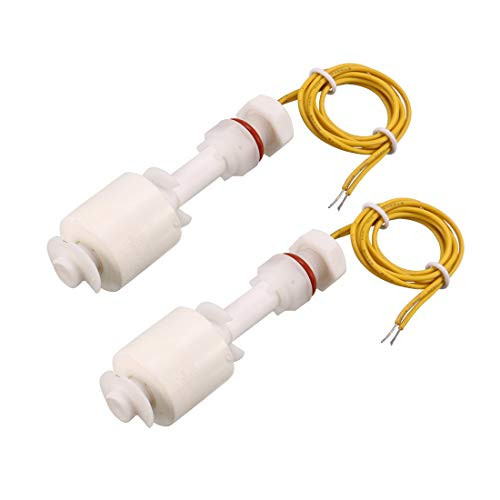

Specifications:Product Name: Float Switch
Max Contact: Rating 10W
Max Switching Voltage: 110V DC
Max Switching Current: 0.5A
Max Breakdown Voltage: 220V DC
Max Carry Current: 1.0A
Max Contact Resistance: 100mohm
Temperature Rating: -10 ~ +60 C / 85 C
Float Ball Material: PP
Float Body Material: PP
Float Ball Size(Approx): 21 x 22mm(L*D)
Thread Dia(Approx): M10
Body Total Length: 57mm
Cable Length: 35cm
Color: White;Yellow
Net Weight: 28g
Package Content
2pcs x Float Switch
Description:A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.
It can be easily converted from normally open to normally close by inverting the float.
Note:
because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
Feature:This float switch is a simple structure,easy installation liquid level controller.It does not have a complex circuit,will not be disturbed,as long as the material selection,liquid,pressure or temperture can be used in any environment.
Light weight and simple working principle,high reliability.
The float level switch is widely used in electronic,electrical,chemical,water treatment,drainage and other walks of life level control and alarm.
