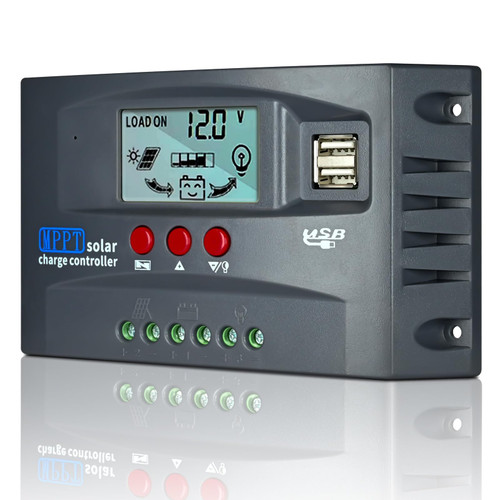

[Upgraded]60A MPPT Solar Charge Controller, 12/24v Solar Panel Charge Controller Intelligent Regulator with 5V Dual USB Port, LCD Display, Auto Parameter Adjustable

Product Specification

Voltage: DC 12V/24V

Charge Current: 60A

Display: LCD

Self-consumption: <10MA

Overcharge protection: 14.4V / 28.8V

Overcharge and float: 13.7V / 27.4V

Charging recovery voltage: 12.6V / 25.2V

Over discharge protection: 10.7V / 21.4V

Over discharge recovery: 12.6V / 25.2V

Dual USB output: 5V / 2A (for mobiles, iPads, etc.)

Working temperature: -35?-60?

Package Includes

1 x MPPT Charge Controller

1 x User Manual

Q&A

1. Q: How many watts (W) of solar panels can be connected?

A: 30A within 360W, 40A within 480W, 50A within 600W, 60A within 720W.

2. Q: Does this controller support lithium batteries?

A: The new controller can be used for lead-acid and lithium batteries. If you charge lithium batteries, you must set the charging parameters after connecting to the power. Please refer to the manual for details.

3. Q: My solar panel is 36V 200W, can I charge 12V battery?

A: To charge a 12V battery, the working voltage of the solar panel can be between 17V and 23V, and for a 24V battery, the working voltage of the solar panel can be between 36V and 46V. Please make sure that the working voltage of the power supply and solar panels is within this range. If it is too high, the controller will be damaged.

4. Q: Can the inverter be connected to the load side of the controller?

A: Please connect the inverter directly to the battery and not to the load terminal of the controller.

5. Q: Does the controller have a requirement for battery capacity?

A: No, as long as the voltage corresponds to it (but the maximum current of the board and the battery capacity should correspond). For example, the solar panel current is 5A, the battery capacity is preferably 50 AH.
