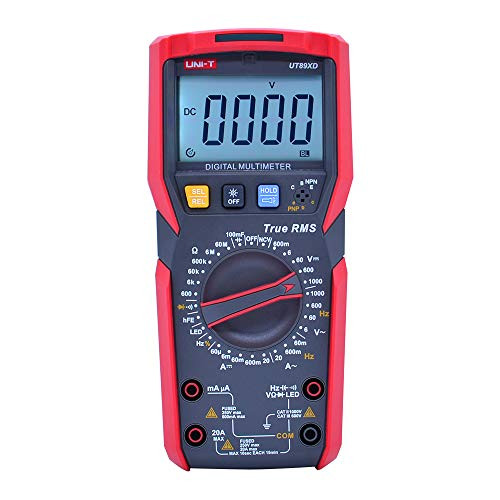

UNI T UT89X multimeter True RMS NCV tester ac dc Voltmeter Ammeter Capacitance Frequency Resistance Temperature tester

UT89X/UT89XD is a reliable hand-held 35/6 bit digital multimeter with true RMS sine wave measurement. It can measure Max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, diode, hFE, continuity and NCV, quickly distinguishing between neutral and live wires accurately. UT89X can measure temperature and detect neutral and live wires with a test lead. UT89XD can perform LED test. Equipped with audible and visible alarm, flashlight and auto backlight functions, this series can be used in dark environment. It attracts users with its bi-color durable case, modern exterior and multiple functions. Specifications: DC voltage (V): 600mV/6V/60V/600V/1000V; ±(0.5%+2) AC voltage (V): 6V/60V/600V/1000V; ±(0.8%+5) DC current (A): 60?A/60mA/600mA/20A; ±(0.8%+8) AC current (A): 60mA/600mA/20A; ±(1%+12) Resistance (?): 600?/6k?/60k?/600k?/6M?/60M?; ±(0.8%+3) Capacitance (F): 6nF/60nF/600nF/6?F/60?F/600?F/6mF/60mF/100mF; ±(2.5%+20) Frequency (Hz): 9.999Hz/9.999MHz; ±(0.1%+4) Duty cycle: 0.1%~99.9%; ±(2%+5) Temperature (?): -40?~1000?; ±(2%+4) Temperature (?): -40?~1832?; ±(2%+8) Features: Display count: 6000 Sampling rate: 3 times/s True RMS: Yes AC voltage frequency response: 45~1000Hz AC current frequency response: 45~1000Hz Live wire test: Yes Audible/visual alarm: V/A/Cap/Diode/hFE/NCV/Live (UT89X)/LED (UT89XD) Diode/Continuity test: Yes Transistor hFE: Yes Dual range NCV test: Yes Auto power off: Yes Low battery indication: Yes Data hold: Yes Function selectionSELECT: Yes Flashlight: Yes Auto backlight: Yes Package includes: 1x UT89X Multimeter 1x Test leads 1x k-type temperature probe 1x English manual
