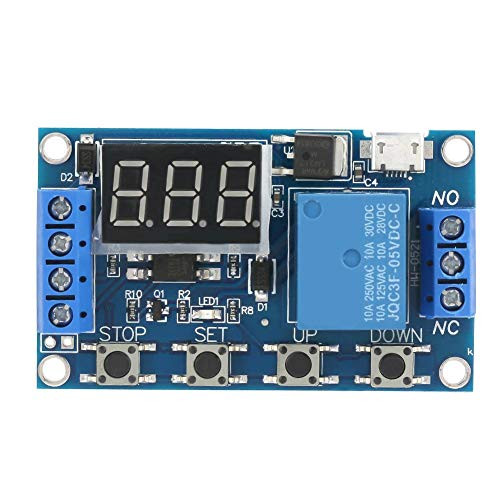

Timer Module Timer Switch Module DC 30V Cycle Timing Relay with LED Screen Delay OnOff Switch Module with Sleep Mode

Specifications: Voltage: 6V~30V(support micro USB 5.0V) Trigger Signal Source: High voltage level trigger(3.0V~24V), signal ground and system ground are not connected to improve system anti-interference ability(or you can connect them). Load Capacity: DC 30V 5A, AC 220V 5A Quiescent Current: 20mA Operating Current: 50mA Operating Temperature: -40?~85? Size: 6.2*3.8*1.7cm / 2.44*1.49*0.67" Timing Range: 0.1seconds to 999 minutes(continuously adjustable) Instruction: Operation Mode: P1: After triggering signal, switch is connected for "OP" time, then disconnected; within the "OP" time: P1.1: if trigger signal again, it is invalid. P1.2: if trigger signal again, restart timing. P1.3: if trigger signal again, switch is disconnected, stop timing. P-2: After triggering signal, switch is disconnected for "CL" time, then switch is connected for "OP" time, and disconnect after timing. P3.1: After triggering signal, switch is connected for "OP" time, then switch is disconnected for "CL" time, and enter loop. If trigger signal during loop, switch is disconnected and stop timing. The loop times (LOP) can be set.
