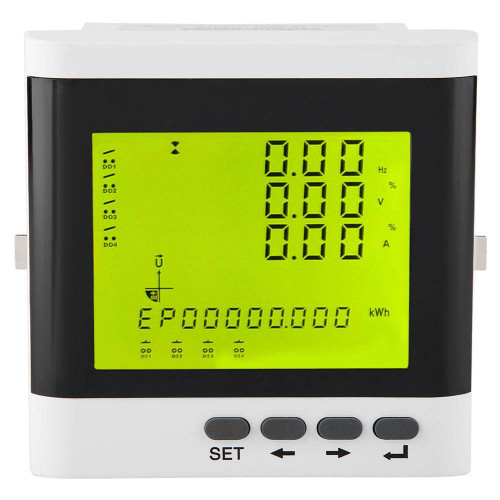

Specification: Material: ABS Color: Shown as picture Size: Approx.9.5*9.5*9.5cm/3.7in Package Weight: Approx.390g/13.8oz
Measuring Function
Parameters
Signal input
Wiring
3-phase 4-wire/3-phase 3-wire
Voltage
Range
380V/100V
Overload
Continuous: 1.2 times;instant:2 times
Power consumption
<1VA
Current
Range
5/1A
Overload
Continuous: 1.2 times;instant:2 times
Power consumption
<1VA
Frequency
45-65Hz
Power supply
AC/DC85-265V.AC220V-5VA
Communication
RS48 communication interface, isolation of physical layer
Meet international standard MODBUS-RTU protocol
Communication speed 1200-9600
Verification mode N81,E81,081
Analog output
0/4-20mA or O-5/10V transmitting output
Programmable to set transmission items and corresponding value
Relay output
Programmable remote control/alarm relay output
Capacity 5A/250VAC5A/30VDC
Programmable electric quantity alarming, switching input, analog output or remote control
Remote measuring switch
Remote measurement of switching input, master mode input without source
Programmable related alarm output
Measuring level
Level 0.5
Display modes
LED digital, LCD liquid crystal display
Environment
Working temperature:-10~+55°C
Storage temperature:-20-+75°C
Relative humidity:<80% RH
Safety
Insulation: signal, power, output terminal housing resistance>5MQ
Voltage withstand: housing between signal input, power supply and output>AC2KV
