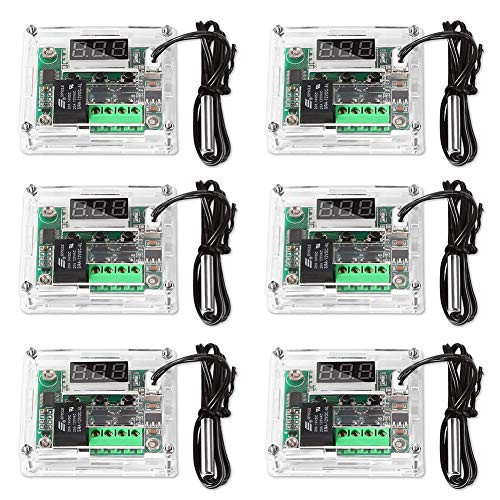

Temperature Controller with Sensor_ _50? to 110 ? Digital Temp Display Microcomputer Thermostat Module Board Switch with Sensor Probe_12V_

Package Includes: 1 x Temperature Controller Specifications: Input Voltage: DC12V, DC24V(Optional) Temperature Measurement Range: - 50?~110 ? Resolution Ratio: -9.9?-99.9?--0.1?  other temperature intervals--1? Measurement Precision: 0.1 ? Control Precision: 0.1 ? Return Difference Precision: 0.1 ? Refresh Rate: 0.5 S High-temperature Protection: 0-110 ? Measurement Input: NTC (10K 0. 5%) waterproof sensor Output: 20A Relay Environmental Requirements: Temperature Requirement: -10 ?-60 ? Humidity Requirement: 20%-85% Size: 48 mm (length) * 29 mm (width)*32mm(depth) Opening Size: 46*26.5mm The Machine Power Consumption: static current is over 35MA, Pickup current is over 65MA Methods of Use: After Connecting to the power supply and load (referring to the wiring diagram), you can supply power for the controller, the color red manifest for measuring temperature, the following color blue (or red) as required to set the temperature In the case of manifesting real temperature and please press the button set, the following setting text digital will flash and temperature, after completing the setting, please wait for 3 it will return automatically, at this time controller will automatically disconnect Relay according to the preset temperature, this senor can meet all kinds of large power load, please make sure the line is correct The Description of Light and Digital Tube Status: Light: The off means Relay is disconnected, and the normal light on shows that the Relay has closed. Digital tube: The sign LLL is the open circuit of sensor and the sign "HHH" means beyond the measuring range, the controller will forcibly disconnect Relay, the sign --- means high- temperature protection
