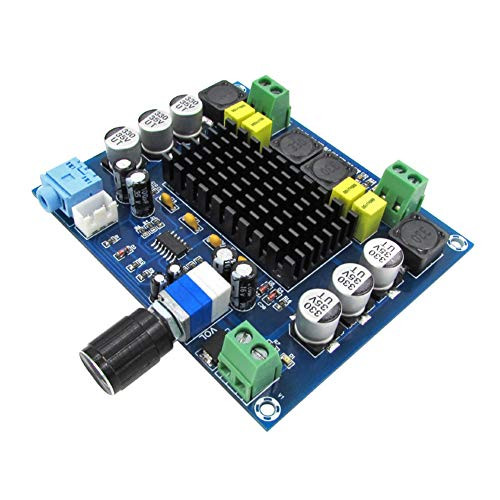

Taidacent XHM568 2 Channel Stereo Amplifier TPA3116D2 Amplifier Speaker 100W2 HighPower Digital Audio Power Amplifier Board

Product Name: Digital Power Amplifier Board Model: XH-M568 Chip Type: TPA3116D2 Supply voltage: DC12~24V Output power: 100W*2 Output impedance: 4~8? Output voltage: DC5V/DC12V Product weight: 64g Appearance size: 66*58*28mm Mounting hole distance: 59.6*51.6mm Product introduction: XH-M568 digital power amplifier board, using imported power amplifier chip TPA3116D2, with high-fidelity stereo sound quality; onboard three audio input ports, respectively AUX audio dock and two 3P terminals; (Note: only one input port can be used at a time , but the three input ports can be used for audio switching.) The power input power of the power amplifier is DC 12~24V, with two-channel output, the output impedance is 4~8?, and the maximum power is 100W*2. At the same time, the power amplifier also has two power output, respectively. It is DC 5V-0.2A and DC 12V (current depends on the input power of the power amplifier board). The on-board volume potentiometer can realize the volume adjustment and power amplifier switch machine. Audio input: 3 audio ports can be used as audio input, but only one port can be used at a time, and 3 audio ports can be used as audio switching applications. Output power: The power amplifier board outputs a DC5V-0.2A power supply, which can be used for power supply of other 5V devices, such as control panel and Bluetooth decoder board. It also outputs a power supply equal to the power supply voltage of the power amplifier. The current depends on the power supply of the power amplifier. At the same time it can also be used as a power supply port for the amplifier.
