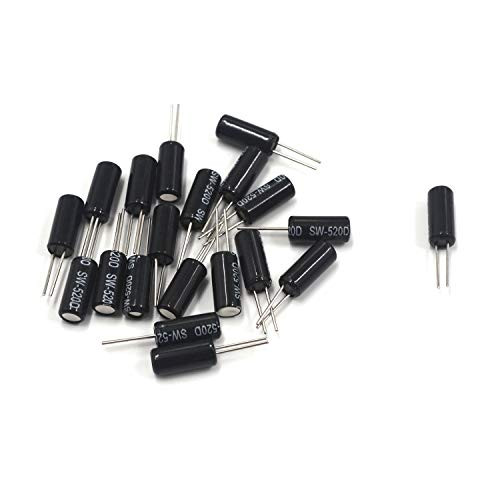

Taidacent Tilt Sensor Wireless 12V Power Supply Stable Version 2-Way Tilt Sensor Plus Relay Module SW-520D Angle Tilt Sensor

use: Various equipment dumping, tilt alarm, angle detection, 2-way detection output control, with relay output, can be triggered by two conditions, the output terminal is connected in series (AND gate), either condition is triggered, and the output terminals are connected in parallel ( OR gate), two groups independently control three control modes, directly connected to AC high-power products. Module features: 1, the sensor defaults the company's SW-520D high sensitivity tilt sensor 2, 12V power input for relay use, onboard 78L05 regulator triode, provide sensor comparator, make the product more stable and reliable; 3. The comparator output directly drives the relay, which can be connected to 220V AC or other equipment; 4, with potentiometer adjustment sensitivity; 5. Two-way sensor interface can be connected to two different sensors to control the related products in accordance with the corresponding two conditions; 6, the external dimensions are 60x4.3mm, thickness 19mm, with 4 3mm fixing bolt holes for easy installation 7. The two relay outputs can be independently controlled separately or in series and in parallel to achieve the effects of the OR gate and the AND gate. Module instructions: 1. The initial state of the relay depends on the conduction and disconnection of the tilt sensor. When it is turned on, the relay is closed, the common terminal is connected to the normally open end, and when the tilt sensor is disconnected, the relay is disconnected, the common terminal and the normally closed state. End on; 2. The tilt sensor is generally installed in the normally open state in the initial state, so that the tilt sensor and the relay are not in the working state, and the service life is prolonged; 3. The default SW-520D sensor is used for 90 degree tilt detection of objects.
