Features:
SMT series integrated heat sink design The control end is connected with tunnel type lifting gasket, and the maximum wire diameter can reach 2.5mm The load end uses the lifting type shim to compress, the maximum line diameter may reach 5mm The output end can use the short bridge, increasing the installation efficiency by 50% Compared with the traditional 45mm solid state relay, it saves 60% of cabinet space The shell adopts V0 flame retardant engineering plastics
Specification:
Models: MT4810/SMT4825/SMT4840/SMT4860/SMT4880(optional)
Load output current: 10A/25A/40A/60A/80A
Load output voltage: 42-480vac
Control type: DC control AC
Control voltage: 4-32vDC
Control current: 10mA
Isolation voltage: >2500VAC
Leakage current:?1mA
Response time:?1/2 cycle
Weight: 65 g / 2.3 oz(approx.)
Package list:

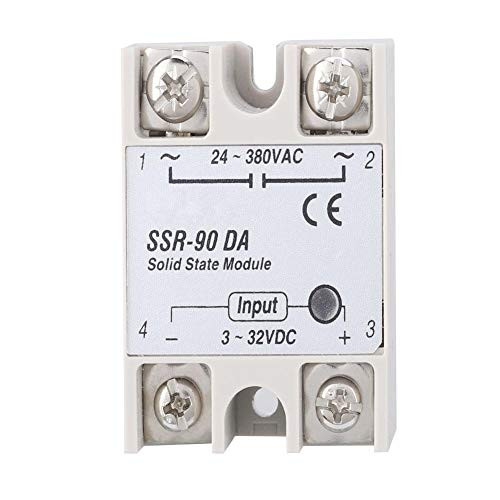

1 x Solid State Relay
