Specification:

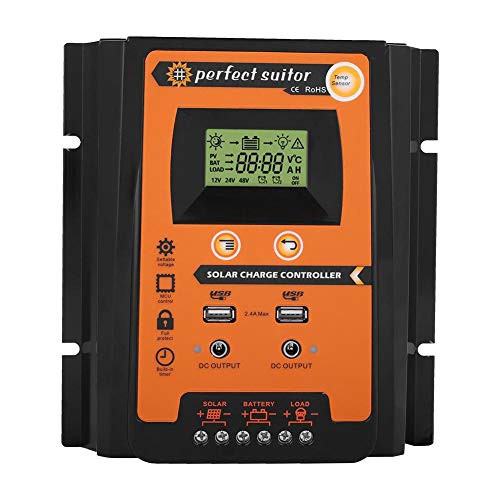

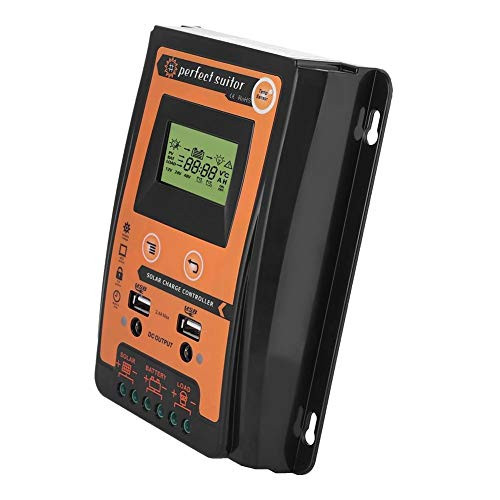

Item Type: Solar Charge Controller
Material: ABS
System voltage: 12V, 24V automatic adaptation
Maximum Photovoltaic Voltage: 12V, 23V; 24V, 46V
Lifting Charge Voltage: 14.4V
Floating Charge Voltage: 13.7V (recognized value, adjustable)
Electric Cut Off Voltage: 10.7V (default value, adjustable)
Discharge Recovery Voltage: 12.6V (default, adjustable)
Charging Recovery Voltage: 13V
Threshold Value of Light Control on: 8V for photovoltaic panel (there is delay for light control on)
Threshold Value of Light Control Switch Off: PV panel 8V (there is delay for light control switch off)
USB Output: 2 way USB output, 5V, 2.5A (maximum)
Standby Current: Less than 10mA
Working Temperature: - 35 to +60 ?
How to Use:
1.Connectthepositiveandnegativepolesofthebatterytothecontrollerasshowninthemanual,andthecontrollerwillautomaticallydetectthebatteryvoltage.
2.Connectthepositiveandnegativepolesoftheloadtothecontrollerasshowninthemanual,andbecarefulnottoconnectthemreversely.
3.Connectthesolarpaneltothecontrollerasshowninthemanual.
Package List:
1 x Solar Charge Controller
1 x Manual
Note:
1. This controller is automatically recognized by 12V24V. When installing for the first time, please ensure that the battery has enough voltage so that the controller can recognize the correct battery type
2. The controller shall be installed as close to the battery as possible to avoid voltage drop caused by too long wire, which will affect normal voltage judgment.
3. This controller is applicable
