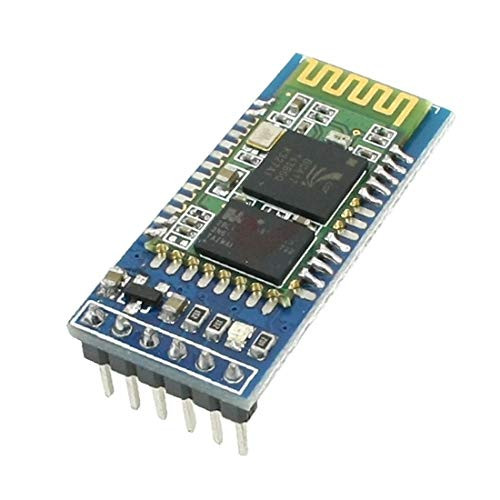

SMAKN LC-05 Bluetooth serial module, wireless serial module, wireless transparent module

*Enhanced Data Rate (EDR) compliant with V2.0.E.2 of specification for both 2Mbps and 3Mbps modulation modes. *Full Speed Bluetooth Operation with Full Piconet Support and Scatternet Support. *UART interface and with baudrate setup function. *Support for 8Mbit External Flash Onboard. *Support for 802.11Co-Existence. *Operating voltage: 3.3V. *Operating Current: pair 20 ~ 30mA, paired 8MA. Size: *Core module: 28mm*15mm*2.35mm. *Whole module: 37mm*17mm*3.7mm. Description: *The Bluetooth UART RS232 serial Converter Module can easily transfer the UART data through the wireless. *Bluetooth,without complex PCB layout or deep knowledge in the Bluetooth software stack, you can combine this bluetooth module with your system: -MCU, ARM or DSP systems. -SOC systems. *Personal Digital Assistants (PDAs). *Computer Accessories. *Other systems your want to use under bluetooth functions. *Support AT commander. *Support Master and Slave mode, modify by AT commander. *Support 1200-115200 baudrate. *CSR Bluetooth chip, Bluetooth 2.0. Feedback: We greatly appreciate your POSITIVE feedback. Please do NOT leave negative feedback without asking for help. Our aim is to provide Top Level Customer Service, so we will try our best to solve any problem.Thank you very much!
