Sipeed Maix M1s Dock RISC-V Linux tinyML AIoT Single Board Computer with RISC-V CPU BLAI 100GOPS NPU with OPS for IoT Edge Computing Support FreeRTOS Linux (with Touch Screen and Shell)

-Specification-

MainChip:Three RISC-V CPUs?

· RV64GCV 480MHz

· RV32GCP 320MHz

· RV32EMC 160MHz

AI NN general purpose hardware accelerator?

· BLAI-100, used for video/audio detection/identification?100GOPS hashrate

768KB SRAM + 64MB UHS PSRAM

Encode and Decode?MJPEG and H264(Baseline/Main)?1920x1080@30fps + 640x480@30fps

Camera interface ?DVP and MIPI-CSI

Display interface?SPI?DBI?DPI(RGB)

Wireless Support?Wi-Fi 802.11 b/g/n?Bluetooth 5.x Dual-mode(BT+BLE)?Wi-Fi / BT co-existence

USB?USB 2.0 HS OTG

Onboard Components:

USB to UART debugger (Used for uart communication and burn firmware)

screen interface (Optional 1.69-inch 240x280 capacitor touch screen)

MIPI camera interface (Optional 2M solution camera)

1 analog microphone?1 LED?1 TF card slot

OS Support: Full support for FreeRTOS; Basic support for Linux

Developments: C SDK?MaixHAL C?pikascript python

Burn Firmware:Burn from uart?Virtual disk drag-and-drop burn

AI Framework:

· Support BLAI accelerated inference engine with native SDK

· Suppory universal TinyMaix inference

AI model store?Support Face detection and recognition, posture detection and gesture detection, etc.

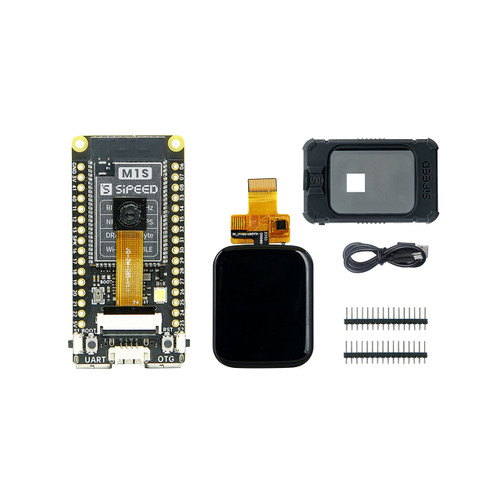

-Package Content-

1x Sipeed Maix M1s Dock Development Board

1x MIPI Camera

2x Pin header

1x 1.69inch 280x240 LCD with touch

1x USB A-to-C Cable

1x Shell
