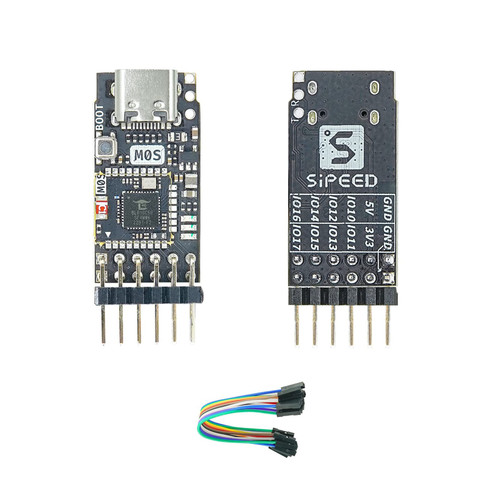

3 Pieces Sipeed M0S Dock tinyML RISC-V BL616 Development Board Onboard Wireless Wifi6 Bluetooth 5.2 Module for AIoT Edge Computing Support USB2.0, RGB LCD, DVP Camera, Ethernet RMII and SDIO

Sipeed M0S Dock is a ultra-low power consumption tiny IOT module Development Board based on BL616 of B-ou-f-falo Lab, supports wireless protocol like Wifi6, BT 5.2 and z-i-g-bee, 320MHz default frequency, tiny size and ultra-low power mode and various wake sources of the chip meet different low power scenarios.

Main Chip BL616: RISC-V CPU?RV32GCP@320MHz default

SRAM: 480KB SRA

Flash: 4MByte

Wireless?

- Support Wi-Fi6

- Support Bluetooth 5.2 Dual-mode(BT+BLE)

- Support Z-i-g-b-e-e

USB: USB 2.0 HS OTG 480Mbps

OS: FreeRTOS

-Development-

· C SDK

· MaixHAL C

· PikaPython

-Burn Firmware-

· USB uart burn

· USB burn

AI Framework: TinyMaix Framework

Model platform: TinyMaix + MaixHub
