Brand: Sheng Jie
Model: t-505f

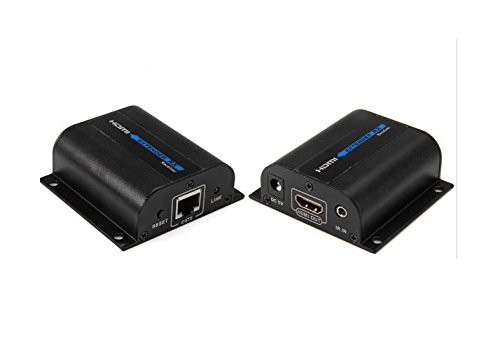

Type: HDMI extender
Material: Aluminum alloy hosuing
Support system: all
Resolution: 1080p
Remote wake up: not supported
Power management: not supported
Line length: 60 (m)
Purpose: high definition HDMI signal extension
Packing list: 1* HDMI Transmitter. 1* HDMI Receiver. 1*5V power supply.1* Manuals
Oem Manufacture & export supplier: Yes
SPECIFICATION
Length of CAT-6 cable between Transmitter and Receiver : Up to 60 meters
HDMI Input: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format output: LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth: 165MHz
Max baud rate: 4.95Gbps
Input Video signal : 0.5~1.5Volts p-p
Output DDC signal: 5Volts p-p (TT1L)
Input/Output HDMI cable distance: 20m AWG26 HDMI standard cable
Max working current: 200mA
Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range: (-15 to +55?)
Operating Humidity range: 5 to 90%RH (No Condensation)
Model: t-505f
Type: HDMI extender
Material: Aluminum alloy hosuing
Support system: all
Resolution: 1080p
Remote wake up: not supported
Power management: not supported
Line length: 60 (m)
Purpose: high definition HDMI signal extension
Packing list: 1* HDMI Transmitter. 1* HDMI Receiver. 1*5V power supply.1* Manuals
Oem Manufacture & export supplier: Yes
SPECIFICATION
Length of CAT-6 cable between Transmitter and Receiver : Up to 60 meters
HDMI Input: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format output: LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth: 165MHz
Max baud rate: 4.95Gbps
Input Video signal : 0.5~1.5Volts p-p
Output DDC signal: 5Volts p-p (TT1L)
Input/Output HDMI cable distance: 20m AWG26 HDMI standard cable
Max working current: 200mA
Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range: (-15 to +55?)
Operating Humidity range: 5 to 90%RH (No Condensation)
