Specifications:
Sensing&Power Input: 190-240 Vac
Burden: 500 VA
Output Power-Continuous: 73 Vdc at 3.5 Adc(255w)
Outout Power-Forcing(240 Vac Inout Power): 105Vdc at 5Vdc (525w)
Regulation: 1.0%
Remote Voltage Adjustment Range:
±10% with 2000 ohm rheostat
±5% with 1000 ohm rheostat
Frequency Compensation: Adjustable
Roll off Frequency:
54-61 Hz for 60Hz
45-51 Hz for 50Hz
Operating Temperature: -40? to +60?
Storage Temperature: -65? to +85?
Power Dissipation: 8 watts maximum
Voltage Buildup: Internal provisions forautomatic voltage build up from generator residual voltage as low as 10 Vac.
EMI Suppression: Internal Electromaghetic Interference Filter(EMI Filter)
Package Includes:

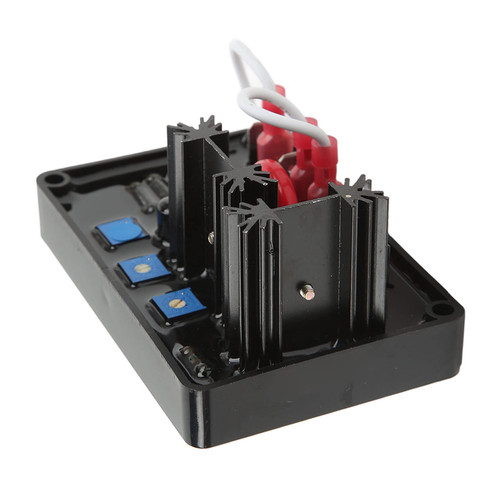

1 x SE350 Automatic Voltage Regulator.
