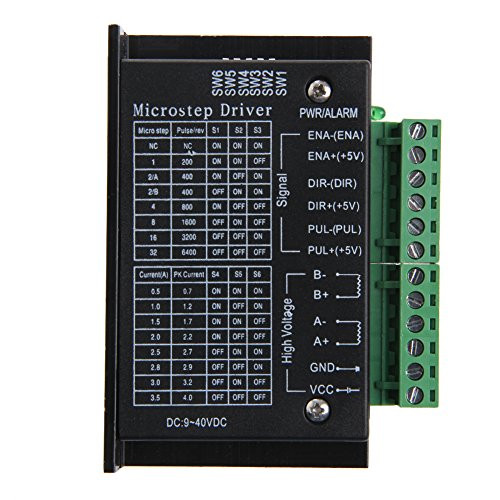

SainSmart TB6600 CNC Micro-Stepping Stepper Motor Driver 4.5A

Overview: This drive adopts Toshiba TB6600HG driver chip, which runs smoothly, the motor is locked without noise, and the protection functions such as overcurrent, overheating, reverse connection, freewheeling, etc. Maximum output phase current 4.5A, input voltage 12-40VDC. It is a low-cost, cost-effective driver. Drive Identification Introduction: DC+: positive power supply The supply voltage should not be higher than 40V. It is recommended to use 24V or 36V switching power supply. The power supply depends on the size of the motor. DC-: negative electrode A+, A-: Motor Phase B+, B-: Motor Phase PUL+, PUL -: pulse signal DIR +, DIR-: direction signal ENA+, ENA-: Enable signal Packing list: 1. ST-4045-A1 X1 2. Paper Manual Instruction X1
