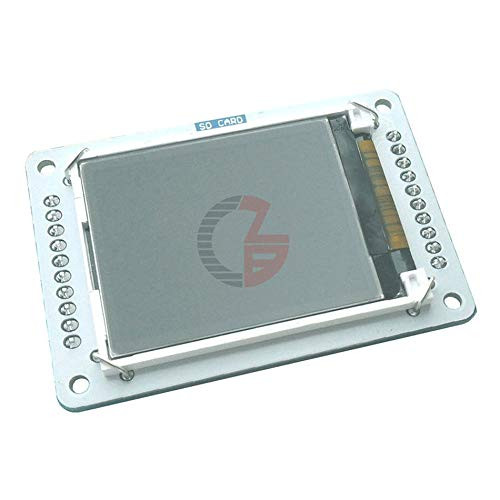

SainSmart 1.8" TFT Color LCD Display Module with SPI Interface & MicroSD for Arduino UNO MEGA R3

SainSmart 1.8 TFT Color LCD Display Module with SPI Interface MicroSD for Arduino UNO MEGA R3

Was: $65.88
Now: $32.94
(No reviews yet) Write a Review
SKU:
K252209
UPC:
6955170897278
Condition:
New
Availability:
Free Shipping from the USA. Estimated 2-4 days delivery.
Features : Display Mode: 1.8" TFT SPI Interface, Transmissive, Normally white;. Display Color: 262K colors;. Backlight Type: LED. Resolution: 128W 160H Dots. Board Size: 5.00 x 3.4cm. View Area: 28.03W 35.04H mm. Dot Size: 0.06W 3 0.18H mm. Dot Pitch: 0.18W 0.18H mm. Viewing Angle: 6 o"clock. SPI Bus interface. IC Driver: ST7735R. 5V/3.3V TTL logic Compatible, can be used in 5V/3.3V IO Arduino system directly. Signal Definition : GND : Power Ground. VCC : 5V power input. CS : Chipselect for LCD, SDA : LCD Data for SPI. SCL : SCLK for TFT Clock. RS/DC : Command/Data Selection. RESET : LCD controller reset, active low. CS (SD-CS) : Chipselect for TF Card, CLK (SD-Clock): SPI Clock. MOSI (SD-DI) : SPI Master out Slave in. MISO (SD-DO) : SPI Master in Slave out.
!
